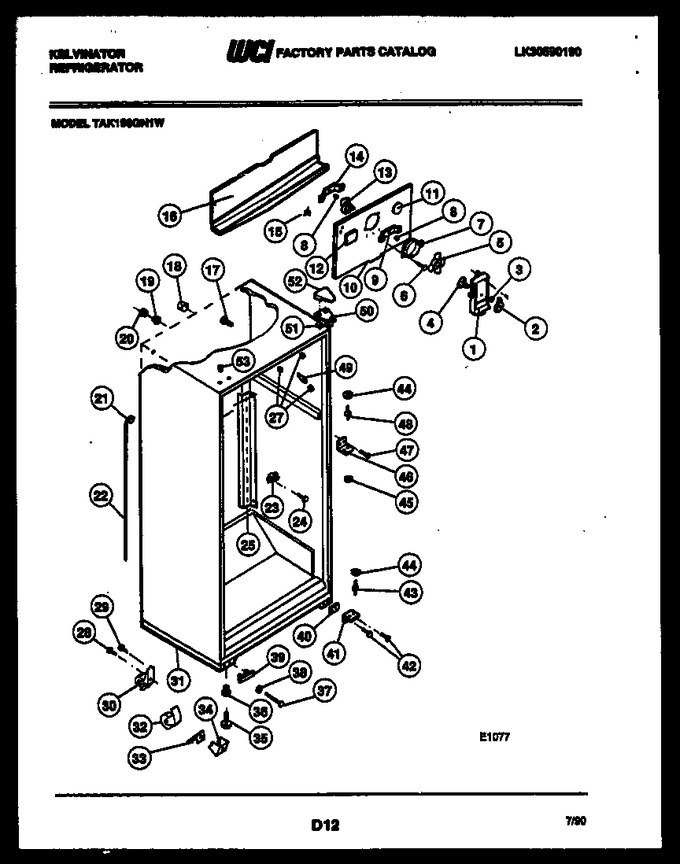

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G163061-86		Cover, Fan		Appelez-nous	-
2	5308000081		Knob - Damper Control				$ 36.02
3	5303001028		Push-nut		Appelez-nous	-
4	5303001331		Damper, Fan				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	218843801		Screw   (Replaces: 5303001001)				$ 14.41
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-front		Appelez-nous	-
10	5308009771		Cover, Evaporator Coil		Appelez-nous	-
11	5303208309		Plug, Short Test Hole				$ 45.50
12	5308013636		Plug, Decorative		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303001227		Bracket-rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	5303001470		Drain Trough		Appelez-nous	-
17	5308000097		Support, Coil Cover (2)		Appelez-nous	-
18	5303001198		Tube, Rubber (2)		Appelez-nous	-
19	5303001286		Ferrule-inner		Appelez-nous	-
20	5303001287		Ferrule-outer		Appelez-nous	-
21	5303207353		Seal Ring, Drain Tube				$ 6.81
22	5303210377		Drain Tube & Seal Ring				$ 109.31
23	5308000056		Spout-drain Tube				$ 11.66
24	5303001361		Push-pin Spout (2)		Appelez-nous	-
25	5308000302		Channel-rs & Ls		Appelez-nous	-
27	5304509705		Grommet-shelf Mounting Rs (4)   (Replaces: 5303001609)				$ 10.01
28	5308009762		Bolt-1/4-28 X 1/2 (2)		Appelez-nous	-
29	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
30	5308009773		Roller-rear (2)		Appelez-nous	-
31	5308010092		Cabinet Base		Appelez-nous	-
32	5308009760		Roller, Front (2)		Appelez-nous	-
33	5308009790		Spring, Roller Adj (2)				$ 4.30
34	5308013678		Support-roller (2)		Appelez-nous	-
35	5303205540		Leveling Screw (2)		Appelez-nous	-
36	5308003584		Anchor Nut (2)				$ 7.30
37	5308009761		Screw-roller Adj (2)				$ 18.61
38	5308011326		Washer-nylon (2)				$ 9.87
39	5303001478		Plug, Hinge Hole		Appelez-nous	-
40	5303001323		Shim, Bottom Hinge		Appelez-nous	-
41	5303202834		Bracket, Bottom Hinge				$ 89.41
42	5303001320		Screw - Hinge Mounting (2)		Appelez-nous	-
43	5303001321		Pin, Bottom Hinge				$ 17.25
44	5308000007		Washer, 1/4 Nylon (2)		Appelez-nous	-
45	5308000186		Washer-5/16 Nylon			Immediately	$ 6.02
46	5303001369		Bracket- Center Hinge		Appelez-nous	-
47	5308012258		Screw				$ 2.25
48	5308000184		Pin-center Hinge				$ 8.87
49	5303202336		Corner-trim (white)		Appelez-nous	-
50	5308012843		Hinge-top				$ 71.47
51	5303001037		Shim, Top Hinge				$ 12.39
52	5308012820		Hinge Cover, White		Appelez-nous	-
53	5303001388		Plug, White (2)				$ 2.60
*14737	5308016571		Plug-freezer Liner (5)				$ 4.79
10A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
15A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
25A	5308010253		Screw-channel (6) (non-illustrated)		Appelez-nous	-
27A	5304500407		Grommet-shelf Mounting Ls (4) (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
40A	5308012296		Tapping Plate (non-illustrated)				$ 47.44
47A	5303206754		Washer-steel (2) (non-illustrated)		Appelez-nous	-
50A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
