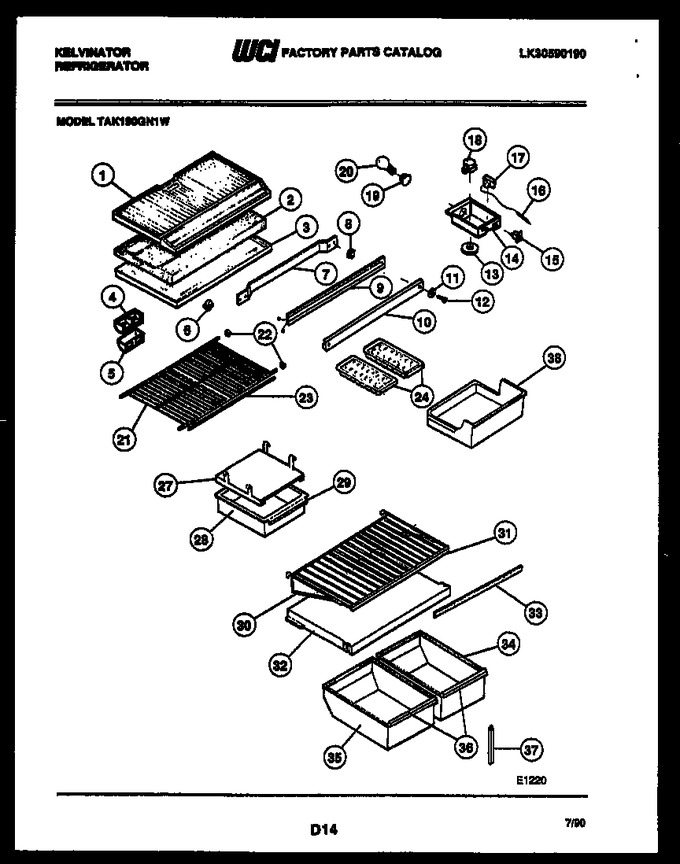

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001505 | Bottom Panel-freezer |
|
- | |||||
| 2 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 3 | 5303016367 | Top Panel-refrigerator |
|
- | |||||
| 4 | 5308000071 | Air Deflector |
|
- | |||||
| 5 | 5303001546 | Cover, Deflector |
|
- | |||||
| 6 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 7 | 5308010008 | Strap, Mullion Mounting |
|
- | |||||
| 8 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 9 | 5303210351 | Heater-mullion |
|
- | |||||
| 10 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 11 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 12 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 13 | 5308010011 | Knob-temperature Control |
|
- | |||||
| 14 | 5317672203 | Control Box |
|
- | |||||
| 15 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 16 | 5308037932 | Sleeve, Plastic |
|
- | |||||
| 17 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 18 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 19 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 20 | 5303001179 | Light Bulb |
|
- | |||||
| 21 | 5303206583 | Shelf-freezer |
|
- | |||||
| 22 | 3201150 | End Cap-shelf (2) |
|
$ 4.57 | |||||
| 23 | 3201186 | Trim-freezer Shelf |
|
- | |||||
| 24 | 5315637618 | Ice Tray (2) |
|
- | |||||
| 27 | 5308000263 | Cover-meat Pan |
|
- | |||||
| 28 | 5317762306 | Meat Pan |
|
- | |||||
| 29 | G161013-67 | Trim-meat Pan |
|
- | |||||
| 30 | 5317739006 | Shelf-full (3) |
|
- | |||||
| 31 | 3201128 | Trim-full Shelf (3) |
|
- | |||||
| 32 | 3015045 | Cover-crisper Pan |
|
- | |||||
| 33 | 3015051 | Gasket-pan Cover |
|
- | |||||
| 34 | 3015046 | Pan-moist/cold Rs |
|
- | |||||
| 35 | 3015047 | Pan-vegetable/fruit Ls |
|
- | |||||
| 36 | 3015059 | Trim-pan (2) |
|
- | |||||
| 37 | 5303205987 | Support-pan Cover |
|
$ 48.41 | |||||
| 38 | G161015-17 | Container-ice |
|
- | |||||
| 14A | G189592 | Label-control Box (non-illustrated) |
|
- | |||||
| 14B | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 17A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 18A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 2A | 3001383 | Wiring Harness, Divider (non-illustrated) |
|
- | |||||
| 3A | 5303001380 | Screw |
|
- |
