SELECT A DIAGRAM

01 - Cartons


02 - Freezer Compartment

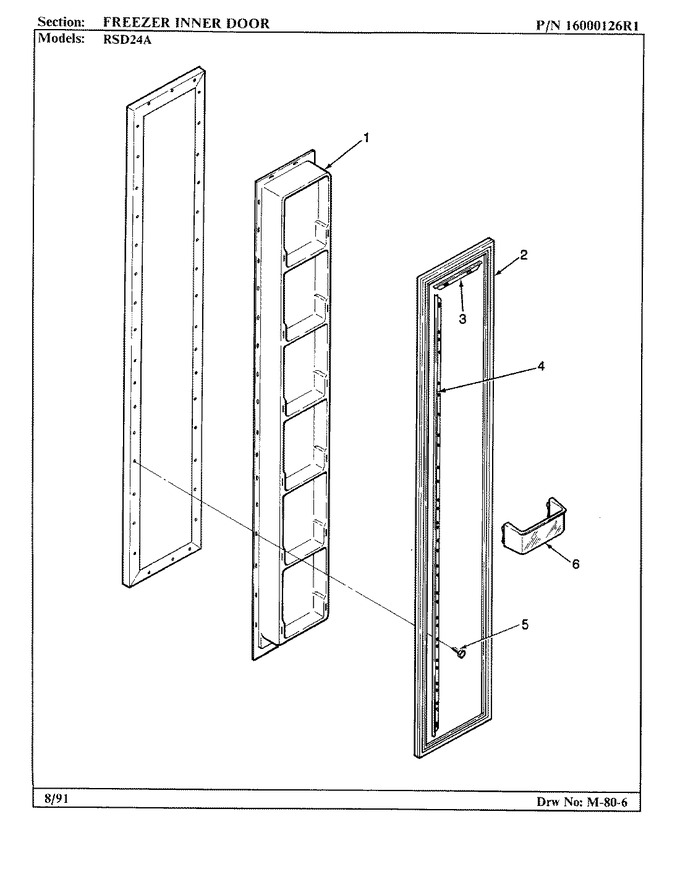

03 - Freezer Inner Door


04 - Freezer Outer Door


05 - Fresh Food Compartment


06 - Fresh Food Inner Door


07 - Optional Ice Maker Kit-rae30


08 - Shelves & Accessories


09 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67015-1		Liner, Frz. Door		Appelez-nous	-
2	67745-4		Gasket, Frz. Door		Appelez-nous	-
3	67032-4		Retainer, Door Seal		Appelez-nous	-
4	67032-1		Retainer, Door Seal		Appelez-nous	-
5	65275-5		Screw		Appelez-nous	-
6	67089-1		Front, Pick Off Frz.		Appelez-nous	-
