SELECT A DIAGRAM

01 - Cartons


02 - Freezer Compartment


03 - Freezer Inner Door


04 - Freezer Outer Door


05 - Fresh Food Compartment


06 - Fresh Food Inner Door


07 - Optional Ice Maker Kit-rae30


08 - Shelves & Accessories

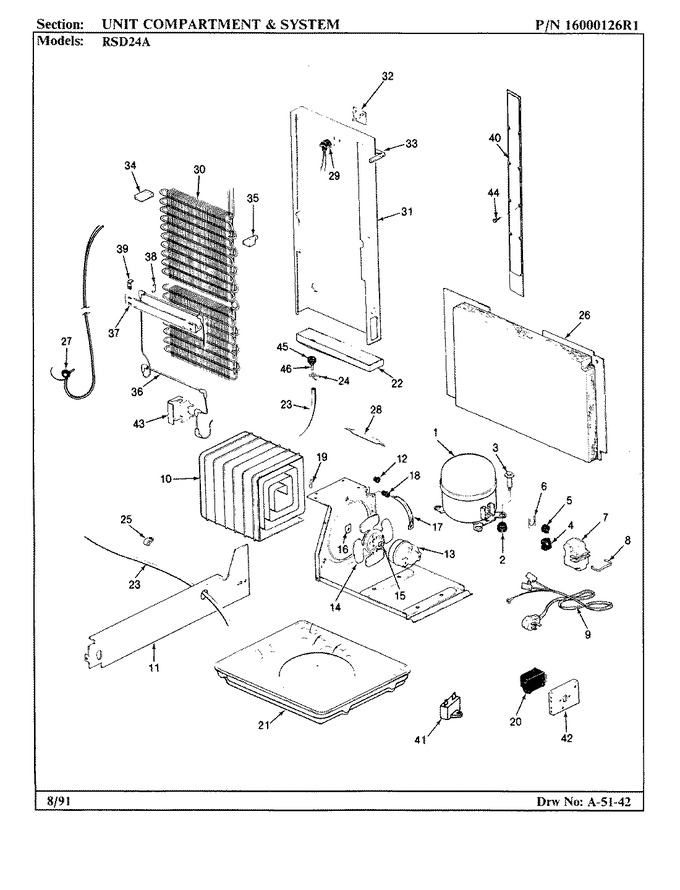

09 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA1017		Compressor		Appelez-nous	-
2	17245-4		Grommet, Compressor		Appelez-nous	-
3	65275-9		Screw, Compressor Mounting		Appelez-nous	-
4	66588-3		Relay, Start		Appelez-nous	-
5	63294-18		Overload		Appelez-nous	-
6	65887-1		Clip, Overload		Appelez-nous	-
7	66589-2		Cover, Terminal		Appelez-nous	-
8	65886-1		Clip, Terminal Cover		Appelez-nous	-
9	52890-3		Cord, Power		Appelez-nous	-
10	RA43644-1		Condenser		Appelez-nous	-
10	60408-2		U-nut, Condenser		Appelez-nous	-
10	400062-1		Screw		Appelez-nous	-
11	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
11	66494-1		Baffle, Air Divider		Appelez-nous	-
12	53351-1		Grommet, Condenser Tubing		Appelez-nous	-
13	833697		Motor, Condenser Fan   (Replaces: 67560-5)			Immediately	$ 79.34
13	65275-33		Screw		Appelez-nous	-
14	WP12587601		Blade, Condenser Fan   (Replaces: 62934-2)				$ 114.00
15	19913-2		Washer, Fan Blade		Appelez-nous	-
16	WP486692		Clip   (Replaces: 19914-0)				$ 7.04
17	56936-1		Bracket, Fan Motor		Appelez-nous	-
18	56933-1		Grommet, Bracket		Appelez-nous	-
19	57051-1		Clip, Motor Bracket		Appelez-nous	-
20	WP68233-2		Timer, Defrost   (Replaces: 66556-8)				$ 179.56
20	405007-1		Screw		Appelez-nous	-
21	45004-20		Cushion Padding, Drain Pan		Appelez-nous	-
21	68236-1		Pan, Drain				$ 89.75
22	53523-2		Trough, Drain		Appelez-nous	-
22	440015-300		Rivet		Appelez-nous	-
23	26911-25		Hose, Drain		Appelez-nous	-
24	WP596669		Clamp, Drain Hose   (Replaces: 9602-3)			Immediately	$ 7.56
25	53516-5		Clamp, Drain Hose		Appelez-nous	-
26	67786-3		Cover, Unit Compartment		Appelez-nous	-
26	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
27	RA95090-2		Heat Exchanger		Appelez-nous	-
27	26088-22		Cover, Heat Exchanger		Appelez-nous	-
28	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
29	52085-29		Thermostat, Defrost				$ 70.25
30	RA43643-10		Evaporator		Appelez-nous	-
31	68834-2		Housing, Evaporator		Appelez-nous	-
31	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
32	55878-1		Board, Terminal		Appelez-nous	-
33	67693-1		Seal Air Return		Appelez-nous	-
33	66325-18		Seal		Appelez-nous	-
34	65063-1		Seal, Styrofoam-(left)		Appelez-nous	-
35	65064-1		Seal, Styrofoam-(right)		Appelez-nous	-
36	WP61001874		Heater, Defrost   (Replaces: 67679-2)			Immediately	$ 124.88
37	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
37	29915-13		Shield, Defrost Heater		Appelez-nous	-
38	52067-1		Clip, Defrost Heater		Appelez-nous	-
39	52561-1		Bracket, Heater Shield		Appelez-nous	-
39	67871-1		Wire Harness, Main		Appelez-nous	-
39	68841-1		Wire Harness, Compressor		Appelez-nous	-
40	67094-1		Cover, Back Wire		Appelez-nous	-
41	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
41	WPW10662129		Capacitor, Run   (Replaces: 65889-2)			Immediately	$ 52.97
42	29282-2		Bracket, Mounting Timer		Appelez-nous	-
42	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
43	26397-3		Rivet, Reflector		Appelez-nous	-
43	67680-1		Reflector		Appelez-nous	-
44	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
45	52526-1		Grommet		Appelez-nous	-
46	26527-9		Drain Tube		Appelez-nous	-
NI	107076-1		Manual, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
