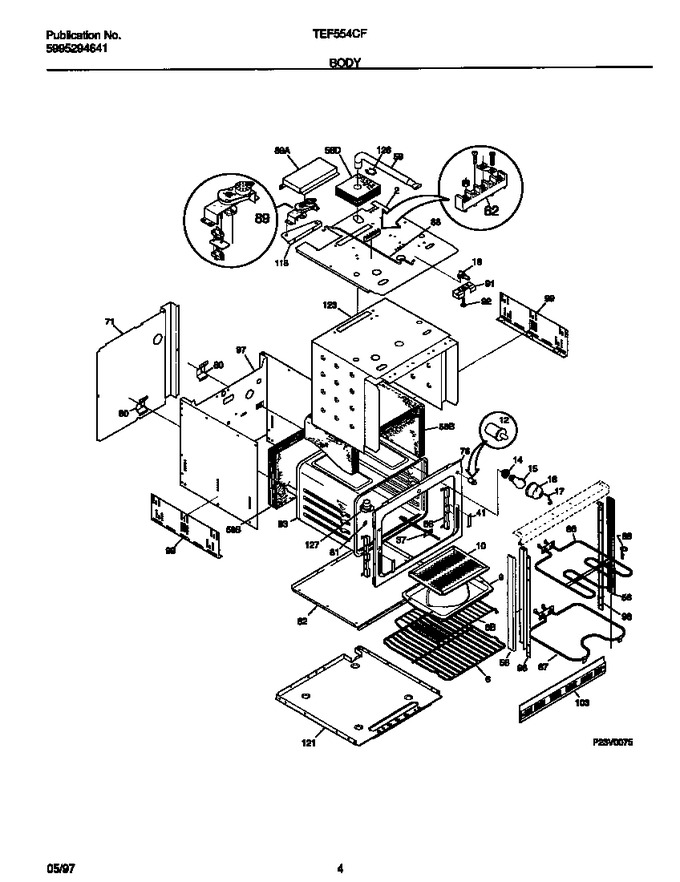

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303301263 | Shield-oven Top |
|
- | |||||
| 6 | 5303299366 | Rack-oven |
|
- | |||||
| 6 | 5303305676 | Shelf-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light, Large/small, Oven |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens, Large/small, Oven (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens, Oven |
|
- | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 37 | 5303208888 | Probe-oven Temp |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 56 | 318145502 | Trim-bodyside, Black, (2) |
|
- | |||||
| 56 | 5303271106 | End Cap-trim, Black, Rh (not Illustrated) |
|
- | |||||
| 56 | 5303271107 | End Cap-trim, Black, Lh (not Illustrated) |
|
- | |||||
| 56 | 5303320422 | Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated) |
|
$ 12.71 | |||||
| 58 | 5303311220 | Insulation,oven Vent |
|
- | |||||
| 58 | 3019048 | Insulation,oven Back ,wrapper |
|
- | |||||
| 59 | 318072516 | Duct-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 67 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 71 | 5303305037 | Shield-wire |
|
- | |||||
| 76 | 318056133 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 3201632 | Spacer-oven |
|
- | |||||
| 82 | 5303305035 | Shield, Oven Bottom |
|
- | |||||
| 83 | 318089508 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 88 | 3016241 | Rod-latch |
|
- | |||||
| 89 | 3016296 | Cover-motor |
|
- | |||||
| 89 | 5303269766 | Motor-latch/lock |
|
- | |||||
| 91 | 3019069 | Housing-latch |
|
- | |||||
| 92 | 5308012004 | Stud - Axle |
|
$ 8.29 | |||||
| 97 | 318066603 | Wrapper |
|
- | |||||
| 98 | 318029300 | Trim-side, Inner, Rh |
|
- | |||||
| 98 | 318029301 | Trim-side, Inner, Lh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 103 | 5303316735 | Trim-base |
|
- | |||||
| 118 | 5303308461 | Bracket-latch |
|
- | |||||
| 121 | 318145001 | Wrapper-base |
|
- | |||||
| 123 | 3202445 | Shield-insulation, Top & Sides |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| *45123 | 3015722 | Clip-wire |
|
- | |||||
| *45124 | 3018802 | Clip-cable |
|
- | |||||
| *45125 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *45126 | 3051647 | Housing-door Latch |
|
- | |||||
| *45127 | 3201881 | Lockwasher |
|
- | |||||
| *45128 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *45129 | 318042500 | Retainer-plate, 64 |
|
- | |||||
| *45130 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *45131 | 5303300421 | Cover-capillary |
|
- | |||||
| *45132 | 5303304015 | Washer, Padded |
|
- | |||||
| *45133 | 5303319292 | Box & Wires Assy |
|
- |
