SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body


04 - Door

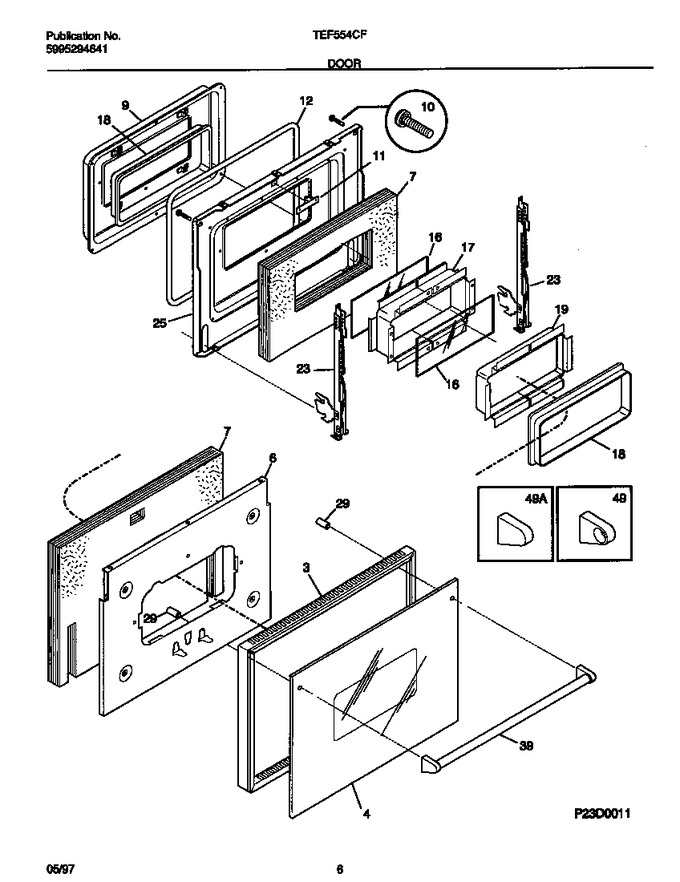

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	3202420		Glass-oven Door, Upper Oven		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303316748		Screw-handle, (2)		Appelez-nous	-
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	318139100		Spacer-glass		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
19	318139200		Collar-glass Mtg, Upper Oven		Appelez-nous	-
19	318139201		Collar-glass Mtg		Appelez-nous	-
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
23	316009400		Hinge-oven Door		Appelez-nous	-
25	318048300		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	318040201		Handle-door, Black, Oven		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
*45134	3202113		Button, Plug		Appelez-nous	-
*45135	5303300414		Spacer, Cork & Rubber				$ 13.18
*45136	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*45137	5303316982		Tape, Seal, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
