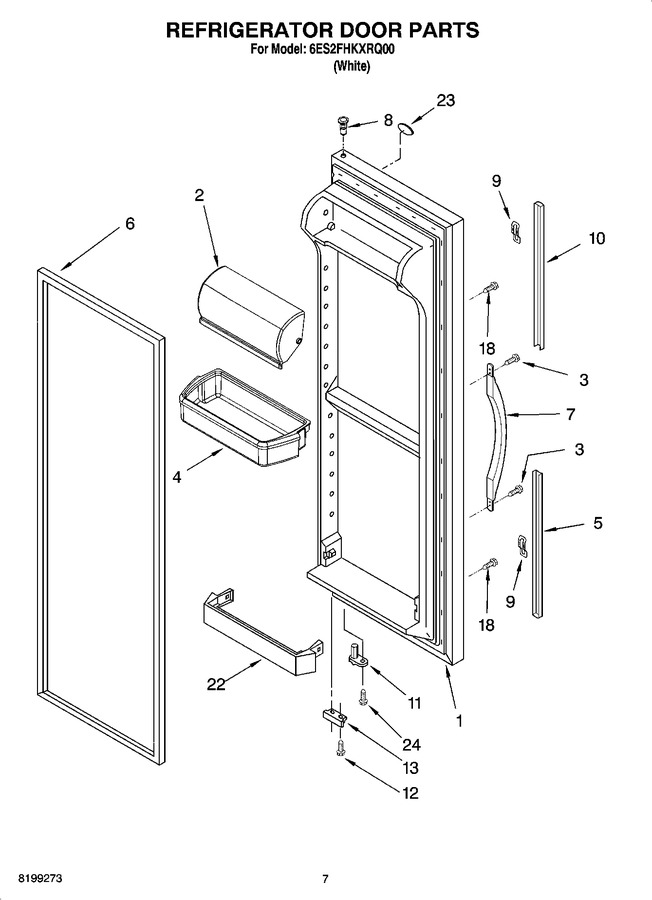

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207033W		Refrigerator Door (includes 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
3	WP489491		Screw   (Replaces: 489491)				$ 6.57
4	WP2187172		Shelf Bin (3)   (Replaces: 2187172K)			Immediately	$ 40.58
5	2217186W		Extension, Bottom (white)		Appelez-nous	-
6	2159073		Door, Gasket Magnetic   (Replaces: 2221300)			Immediately	$ 299.87
7	2217185W		Handle, Center (white)		Appelez-nous	-
8	WP2182179		Thimble-top   (Replaces: 2182179)			Immediately	$ 6.80
9	WP2195327		Clip   (Replaces: 2195327)				$ 6.99
10	2217191W		Extension, Top (white)		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.80
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	2200082		Bracket, Door Stop				$ 5.83
18	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
22	WP2177962K		Trivet, Shelf   (Replaces: 2177962K)				$ 76.63
23	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 83.86
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
