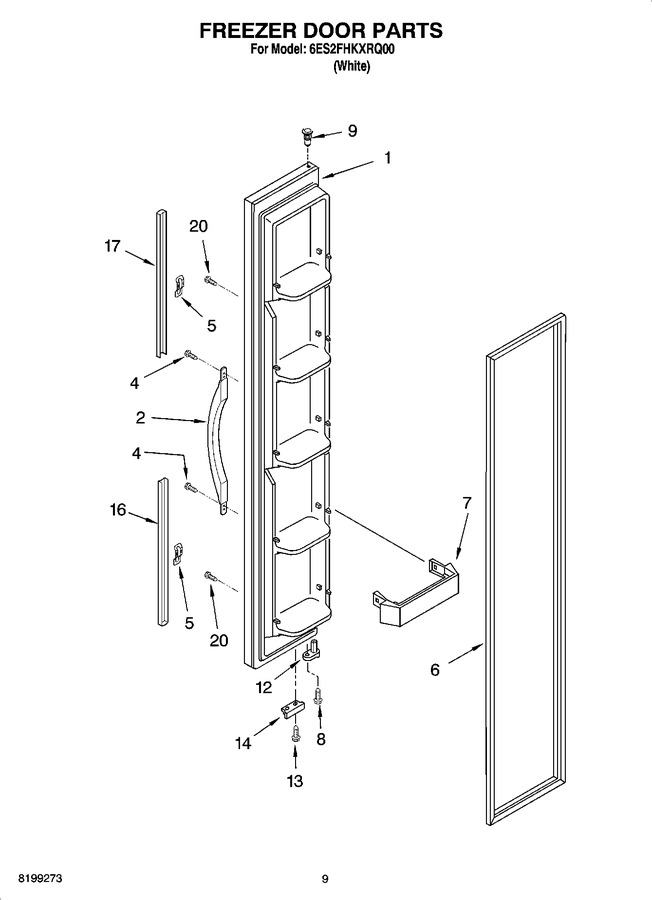

06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2308335W		Freezer Door (includes 6) (white)		Appelez-nous	-
2	2217185W		Handle, Center (white)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.57
5	WP2195327		Clip   (Replaces: 2195327)				$ 6.99
6	2159072		Door, Gasket Magnetic   (Replaces: 2221301)				$ 291.24
7	WP2156021		Trivet, Door Shelf (5)   (Replaces: 2156021K)				$ 59.79
8	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
9	WP2182179		Thimble-top   (Replaces: 2182179)			Immediately	$ 6.80
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.80
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2200082		Bracket, Door Stop				$ 5.83
16	2217186W		Extension, Bottom (white)		Appelez-nous	-
17	2217191W		Extension, Top (white)		Appelez-nous	-
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
