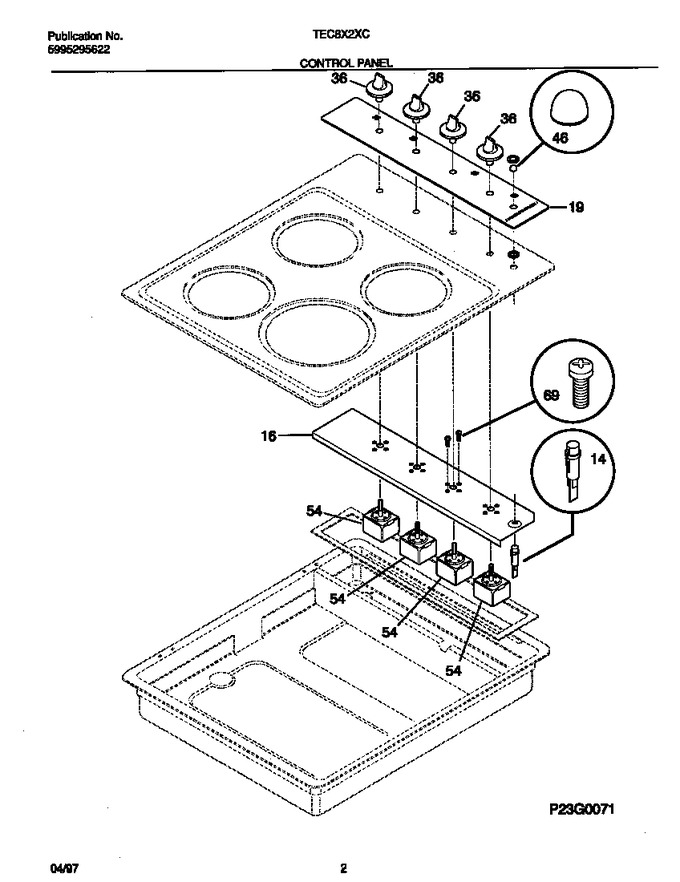

02 - Control Panel
03 - Maintop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5303305547 | Channel-top Stiffener (not Illustrated) |
|
- | |||||
| 19 | 318020801 | Panel-control |
|
- | |||||
| 36 | 318016706 | Knob-control, (4) |
|
- | |||||
| 54 | 318120505 | Switch-surface Unit, Small/large, (3) |
|
$ 91.35 | |||||
| 69 | 5303288565 | Screw, Switch Mtg., 8-32 X 3/16 (Replaces: 5303323134) |
|
$ 3.12 | |||||
| *24680 | 3051038 | Nut |
|
- | |||||
| *24681 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *24682 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| 14A | 3051601 | Light/lamp, Indicator |
|
- | |||||
| 14B | 5303272289 | Seal-light (not Illustrated) |
|
- | |||||
| 16A | 5303291992 | Plate, Instrument Mtg |
|
- | |||||
| 16B | 5303270887 | Seal-plate Mtg (not Illustrated) |
|
- | |||||
| 46A | 318228310 | Lens-light/lamp, Indicator (Replaces: 5303297274) |
|
Immediately | $ 22.91 | ||||
| 46B | 3051224 | Retainer-lens (not Illustrated) |
|
- |
