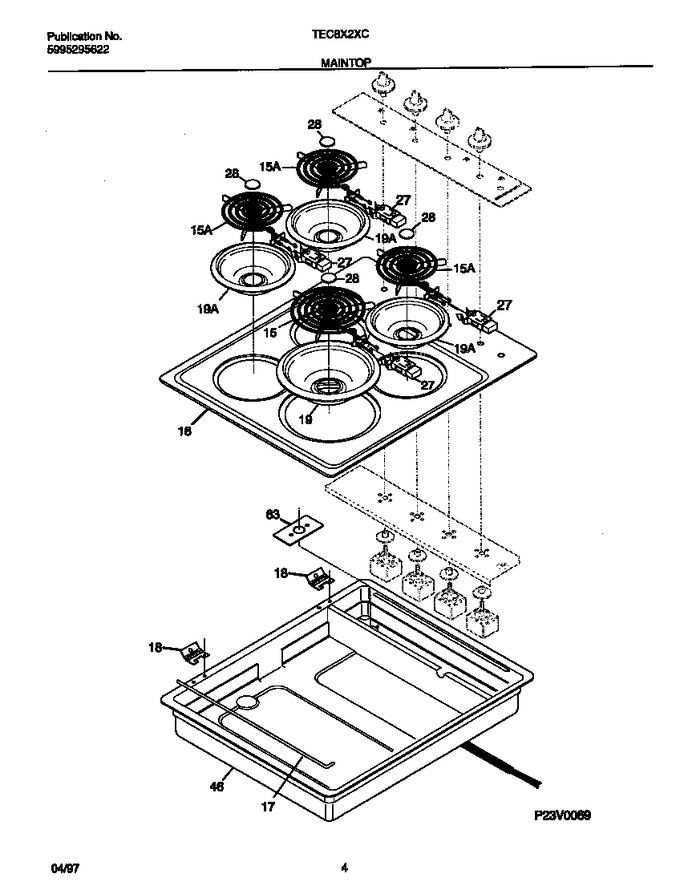

03 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
15	5303311320		Element-surface, Large		Appelez-nous	-
16	318159005		Main Top, White		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 318067010)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	5303309002		Medallion, Surface Element		Appelez-nous	-
46	318077312		Burner Box		Appelez-nous	-
63	5303291326		Plate-grounding		Appelez-nous	-
*24683	5301506869		Clamp-cable		Appelez-nous	-
*24684	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*24685	5303300195		Screw, 10-32 X 3/8, Terminal Block (2)		Appelez-nous	-
*24686	5303935058		Bracket-terminal Block   (Replaces: 5303304731)			Immediately	$ 13.81
*24687	5303311321		Conduit-cable		Appelez-nous	-
*24688	5303311322		Terminal		Appelez-nous	-
*24689	5303311532		Screw, Back		Appelez-nous	-
*24690	5303324001		Spacer		Appelez-nous	-
