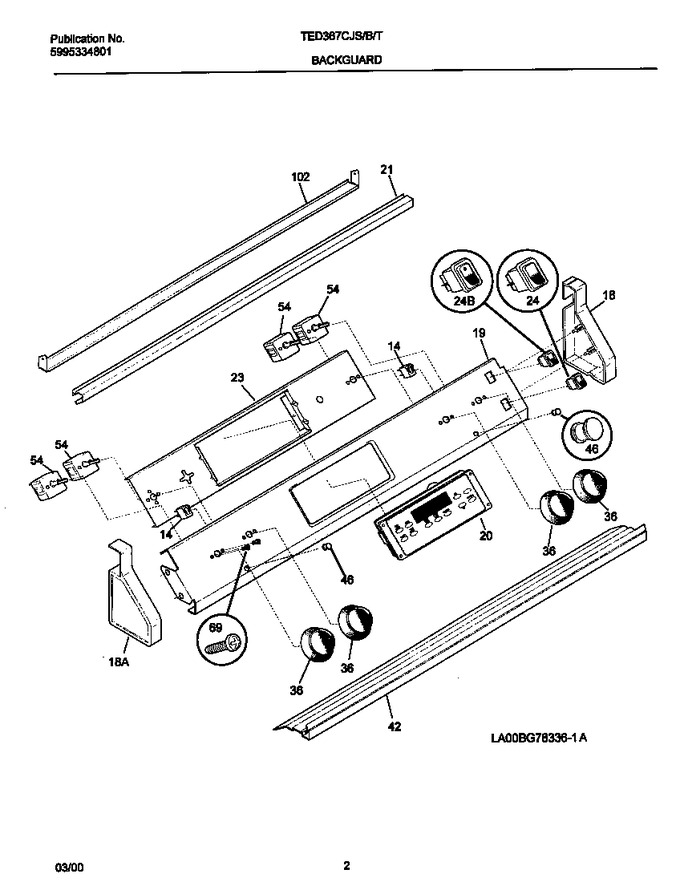

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303304671		End Cap, White, Lh		Appelez-nous	-
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318182600		Panel-control		Appelez-nous	-
20	318012948		Clock/timer,electronic		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015020		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
24	316083100		Switch-rocker, Dual Element, White   (Replaces: 316086901)				$ 89.31
36	318017110		Knob-control				$ 43.00
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
54	318120500		Switch-surface Unit				$ 186.80
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
*17400	3201861		Screw, 6 X 3/8				$ 0.76
*17401	3205110		Clip,plate Connector		Appelez-nous	-
*17402	08002868		Screw 10 X 24 X 1/2				$ 14.18
*17403	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*17404	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*17405	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*17406	5303311124		Screw,(4)		Appelez-nous	-
*17407	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*17408	5303323145		Nut		Appelez-nous	-
