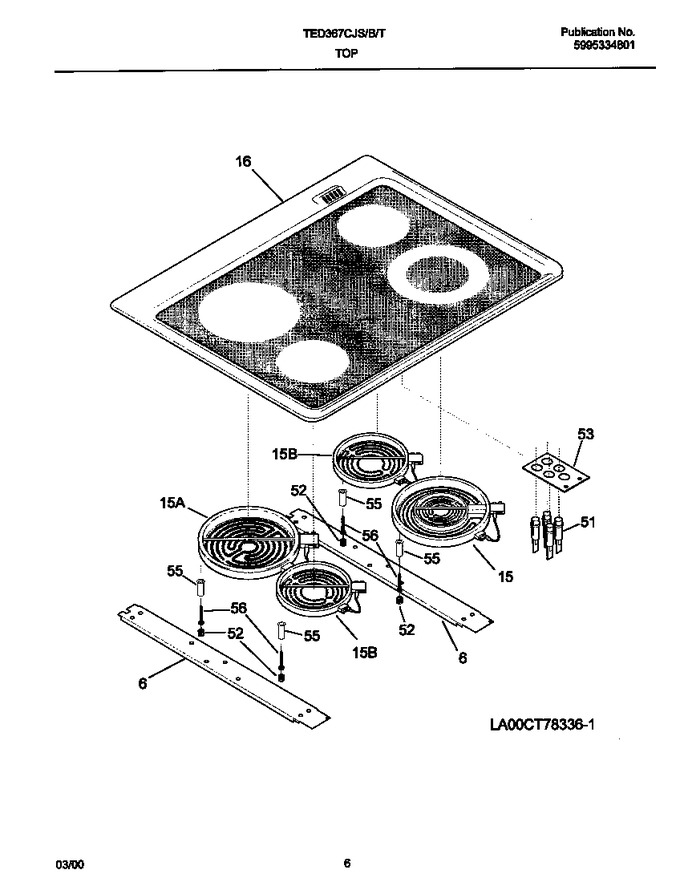

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303311190		Support-element		Appelez-nous	-
15	318178002		Element-surface,dual ,6/9 Inches ,1000/2000w		Appelez-nous	-
15	318198817		Element-surface,small/6 Inch ,1200w ,limit Sw Incl   (Replaces: 318050100)			Immediately	$ 192.78
15	903118-9010		Element-surface,radiant ,2100w ,2100w ,large   (Replaces: 318178101)			Immediately	$ 236.18
16	318079501		Main Top, White		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318125910		Bracket-indicator Light,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
*17425	3201899		Washer,hinge Assy		Appelez-nous	-
*17426	08002868		Screw 10 X 24 X 1/2				$ 14.18
*17427	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*17428	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*17429	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*17430	5303300414		Spacer, Cork & Rubber				$ 13.18
*17431	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
