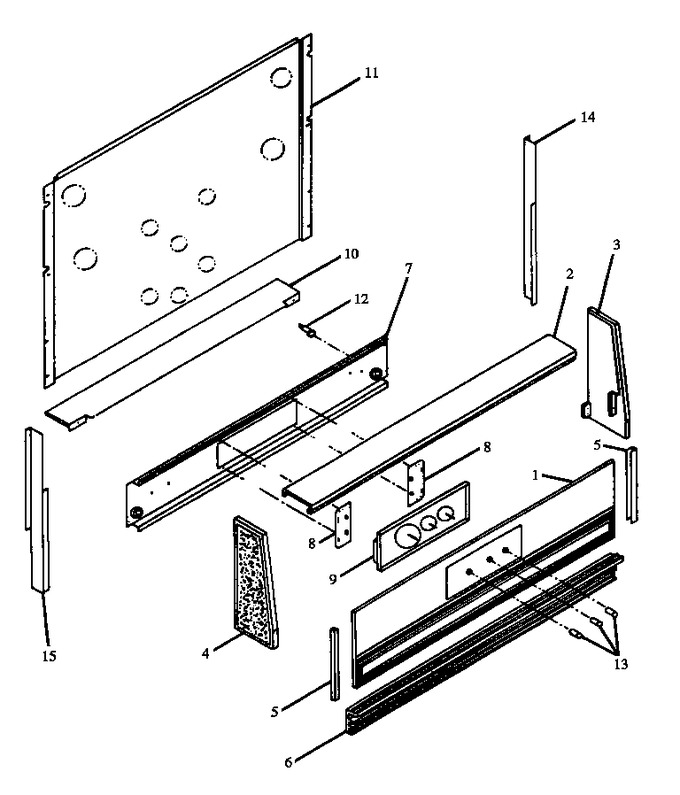

01 - Backguard Parts
02 - Cabinet Assy
03 - Electrical Components
04 - Gas Components
05 - Oven Assy
06 - Oven Door Assy
07 - Sealed Burner Parts
08 - Storage Drawer Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0307593 | Glass, Cont. Pnl. |
|
- | |||||
| 2 | 0060623 | Trim, Top, Backguard |
|
- | |||||
| 3 | 0301002 | End Cap, Bkgd.-r.h. |
|
- | |||||
| 4 | 0301001 | End Cap, Bkgd.- L.h. |
|
- | |||||
| 5 | 0059768 | Channel, Glass (black) |
|
- | |||||
| 6 | 0061800 | Trim, Lower |
|
- | |||||
| 7 | Y0060180 | Backguard, Control Panel |
|
- | |||||
| 8 | 0061264 | Bracket, Clock Mtg. |
|
- | |||||
| 9 | 0306288 | Clock, Analog (blk) |
|
- | |||||
| 10 | 0058894 | Heat Shield, Backguard |
|
- | |||||
| 11 | 0302252 | Rear Backguard & Cover Plate |
|
- | |||||
| 12 | Y0071820 | Indicator Light |
|
- | |||||
| 13 | Y0305508 | Knob, Clock |
|
- | |||||
| 14 | 0306590 | Support, Bkgd (rh) |
|
- | |||||
| 15 | 0306589 | Support, Bkgd (lh) |
|
- | |||||
| NI | M0282009 | Nut (Replaces: Y0097885) |
|
$ 12.06 | |||||
| NI | Y0095197 | Insulation,wrapper |
|
- | |||||
| NI | Y0073657 | Screw, No.6-20 X .375 Pan Hd Ph |
|
- | |||||
| NI | Y0092373 | Screw, No.6-20 X .375 Panhd(blk) |
|
- |
