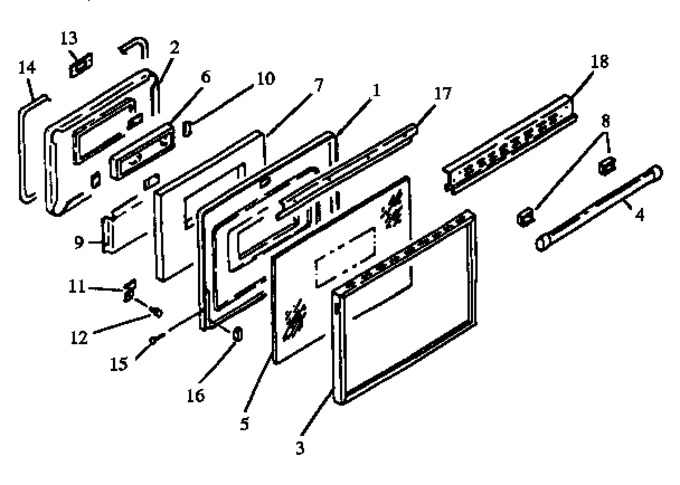

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302725E		Door Backer, Electric (cg)		Appelez-nous	-
2	58808CG		Pad, Ov Dr W/window		Appelez-nous	-
3	304465L		Frame,oven Door,gas		Appelez-nous	-
3	063804B		X Frame, Oven Door		Appelez-nous	-
3	301506W		Frame, Door Glass		Appelez-nous	-
4	304417L		Handle Oven Door		Appelez-nous	-
4	0303773		Handle, Door		Appelez-nous	-
4	303774W		Handle Door White		Appelez-nous	-
5	Y0302446		Glass, Oven Door, White		Appelez-nous	-
5	Y0063650		Panel, Black Glass		Appelez-nous	-
5	0304464		Glass, Oven Door, Almond		Appelez-nous	-
6	0304831		Window Assy		Appelez-nous	-
7	0062614		Insulation,door-sub Backer		Appelez-nous	-
8	Y0079978		Spacer Door Handle		Appelez-nous	-
8	0304122		Spacer Door Handle		Appelez-nous	-
9	306449B		Heat Baffle, Glass (black)		Appelez-nous	-
10	Y0052629		Retainer, Door Glass		Appelez-nous	-
11	Y0062439		Support Bracket, Glass		Appelez-nous	-
12	Y0063661		Bumper, Oven Door		Appelez-nous	-
13	Y0052039		Latch Plate		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	063193G		Baffle		Appelez-nous	-
18	0304466		Top Trim Door (al)		Appelez-nous	-
18	0303371		Top Trim Door		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	Y0303777		Screw No.8-18 X .375 (bl)		Appelez-nous	-
NI	0302844		Screw No.8 18 X 1/2 Black		Appelez-nous	-
NI	0059574		Screw, Square		Appelez-nous	-
NI	0300584		Label,cleaning Instr.		Appelez-nous	-
