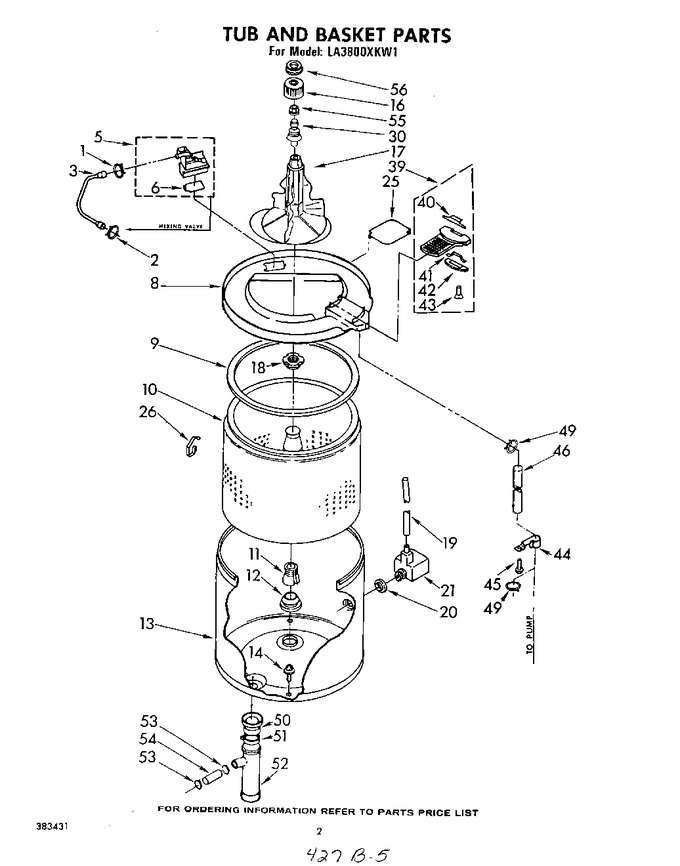

02 - Tub And Basket
03 - Water Pump
04 - Drive
05 - Top And Console
06 - Cabinet
07 - Gearcase
08 - Basket Drive And Brake
09 - Miscellaneous , Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP596669 | Clamp (Replaces: 353366) |
|
Immediately | $ 7.56 | ||||
| 2 | WP596669 | Clamp (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 3 | 356349 | Hose, Water Inlet |
|
- | |||||
| 5 | 366072 | Inlet, Water |
|
- | |||||
| 6 | 355584 | Flapper |
|
- | |||||
| 8 | 381978 | Ring & Filter, Tub (includes Illus. 25 & 39) |
|
- | |||||
| 9 | 383553 | Seal, Tub Ring |
|
- | |||||
| 10 | 359705 | Basket |
|
- | |||||
| 11 | WP389140 | Block, Drive (Replaces: 357782) |
|
Immediately | $ 24.74 | ||||
| 12 | W10814296 | Gasket, Centerpost (Replaces: 96690) |
|
Immediately | $ 8.26 | ||||
| 13 | 359669 | Tub |
|
- | |||||
| 14 | WP358237 | Screw & Washer, Tub (4) (Replaces: 370571) |
|
Immediately | $ 7.97 | ||||
| 16 | 356863 | Agitator Cap Assembly |
|
- | |||||
| 17 | 358370 | Agitator & Insert Assembly |
|
- | |||||
| 18 | WP21366 | Nut, Lock (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 353405) |
|
Immediately | $ 53.94 | ||||
| 20 | 351830 | Seal |
|
$ 5.84 | |||||
| 21 | 360804 | Air Dome Assembly |
|
- | |||||
| 25 | 355852 | Plate, Snubber |
|
- | |||||
| 26 | 359763 | Clip, Tub Ring (4) |
|
- | |||||
| 30 | 369516 | Stud, Agitator Shaft |
|
- | |||||
| 39 | 359785 | Filter Element |
|
- | |||||
| 40 | 357249 | Latch, Filter |
|
- | |||||
| 41 | 94403 | Spring |
|
- | |||||
| 42 | 357250 | Retainer |
|
- | |||||
| 43 | 176360 | Screw |
|
- | |||||
| 44 | 358339 | Bracket, Hose |
|
- | |||||
| 45 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 357640) |
|
Immediately | $ 7.04 | ||||
| 46 | 357343 | Hose, Pump To Filter |
|
- | |||||
| 49 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 50 | 93553 | Hose, Tub Outlet |
|
- | |||||
| 51 | 9421321 | Clamp, Hose |
|
- | |||||
| 52 | 84091 | Manifold |
|
- | |||||
| 53 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 54 | DE81-06162A | Hose, Pump To Sump (Replaces: 92231) |
|
$ 78.75 | |||||
| 55 | 357732 | Locknut, 5/16-24 |
|
- | |||||
| 56 | 358773 | Insert, Agitator Cap |
|
- |
