SELECT A DIAGRAM

02 - Tub And Basket


03 - Water Pump


04 - Drive

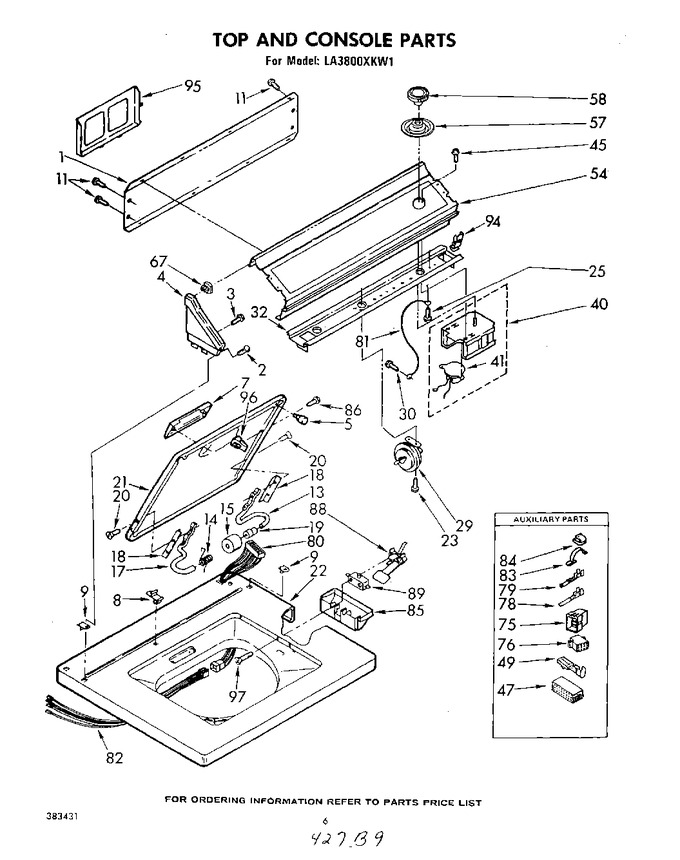

05 - Top And Console


06 - Cabinet


07 - Gearcase


08 - Basket Drive And Brake


09 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358470		Panel, Rear Console		Appelez-nous	-
2	358225		Screw, 8-18 X 1		Appelez-nous	-
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	377315		Cap, End (l.h) (white)		Appelez-nous	-
4	377314		Cap, End (l.h) (white Cap, End (r.h))		Appelez-nous	-
5	WP9724509		Bumper, Rubber (2)   (Replaces: 93770)			Immediately	$ 7.14
7	WP686711		Handle, Lid   (Replaces: 94941)			Immediately	$ 7.16
8	358472		Nut, Push-in (1)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
11	W11693756		Screw, 8-15 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
15	91605		Bumper, Lid Hinge		Appelez-nous	-
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw, Hinge Mounting (4)   (Replaces: 18724)			Immediately	$ 6.47
21	373491		Lid (white)		Appelez-nous	-
22	373374		Top (white)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	359858		Switch, Water Level		Appelez-nous	-
30	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
32	359708		Bracket, Control		Appelez-nous	-
40	380288		Timer, 60 Hz.		Appelez-nous	-
41	365941		Motor, Timer 60 Hz.		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Timer Disconnect (black)   (Replaces: 352089)				$ 11.48
49	352088		Terminal, Female				$ 5.83
54	378651		Panel, Control		Appelez-nous	-
57	359826		Dial, Timer		Appelez-nous	-
58	359822		Knob, Timer		Appelez-nous	-
67	689559		Nut, Push-in (4)		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
80	359366		Harness, (console) Wiring		Appelez-nous	-
81	357535		Wire, Ground		Appelez-nous	-
82	359365		Harness, (cabinet) Wiring		Appelez-nous	-
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (alternate)   (Replaces: 364091)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alternate)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alternate)   (Replaces: 367034)			Immediately	$ 27.45
94	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
95	357645		Rack, Literature		Appelez-nous	-
96	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
