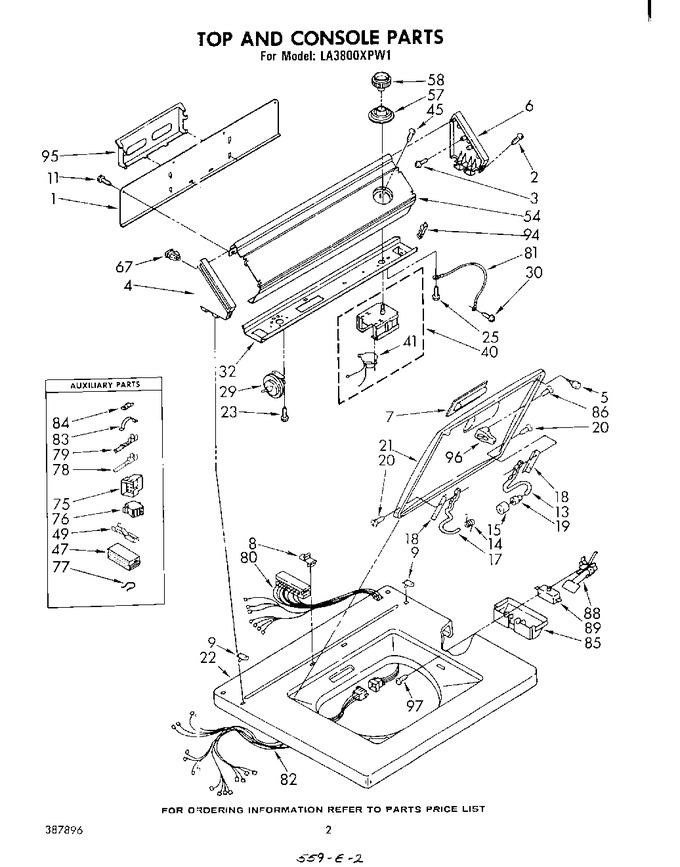

02 - Top And Console , Literature And Optional


03 - Drive


04 - Tub And Basket


05 - Cabinet


06 - Water System (non-suds Only)


07 - Gearcase


08 - Basket Drive And Brake


09 - Water Pump , Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP388326		Screw, 8-18 X 1   (Replaces: 64211)				$ 7.30
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63790		Cap, End (l.h.)		Appelez-nous	-
5	WP9724509		Bumper, Rubber (2)   (Replaces: 93770)			Immediately	$ 7.14
6	63796		Cap , End (r.h.)		Appelez-nous	-
7	379889		Handle, Lid				$ 33.92
8	358472		Nut, Push-in (1)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
11	W11693756		Screw, 8-15 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
15	91605		Bumper, Lid Hinge		Appelez-nous	-
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw, Hinge Mounting (4)   (Replaces: 18724)			Immediately	$ 6.47
21	386022		Lid (white)		Appelez-nous	-
22	386923		Top (white)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	359858		Switch, Water Level		Appelez-nous	-
30	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
32	386627		Bracket, Control		Appelez-nous	-
40	386890		Timer, 60 Hz.		Appelez-nous	-
41	365941		Motor, Timer 60 Hz.		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Timer Disconnect (black)   (Replaces: 352089)				$ 11.48
49	352088		Terminal, Female				$ 5.83
54	64086		Panel, Control				$ 30.07
57	387184		Dial, Timer		Appelez-nous	-
58	386565		Knob, Timer		Appelez-nous	-
67	689559		Nut, Push-in (4)		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
77	387551		Clip, Harness		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
80	387270		Harness, (console) Wiring		Appelez-nous	-
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
82	359365		Harness, (cabinet) Wiring		Appelez-nous	-
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
94	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
95	63020		Rack, Literature				$ 30.32
96	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-
	LIT386199		Label, Energy Guide		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	LIT387930		Sheet, Installation Instructions		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	299885		Wire, Splicing 240 Volt		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	LIT387896		List, Repair Parts		Appelez-nous	-
	LIT386896		Guide, Use & Care		Appelez-nous	-
	LIT385238		Guide, Laundry		Appelez-nous	-
	LIT677967		Dishwasher		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 31.51
	LIT677818		Dryer		Appelez-nous	-
	LIT677813		Automatic Washer		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
