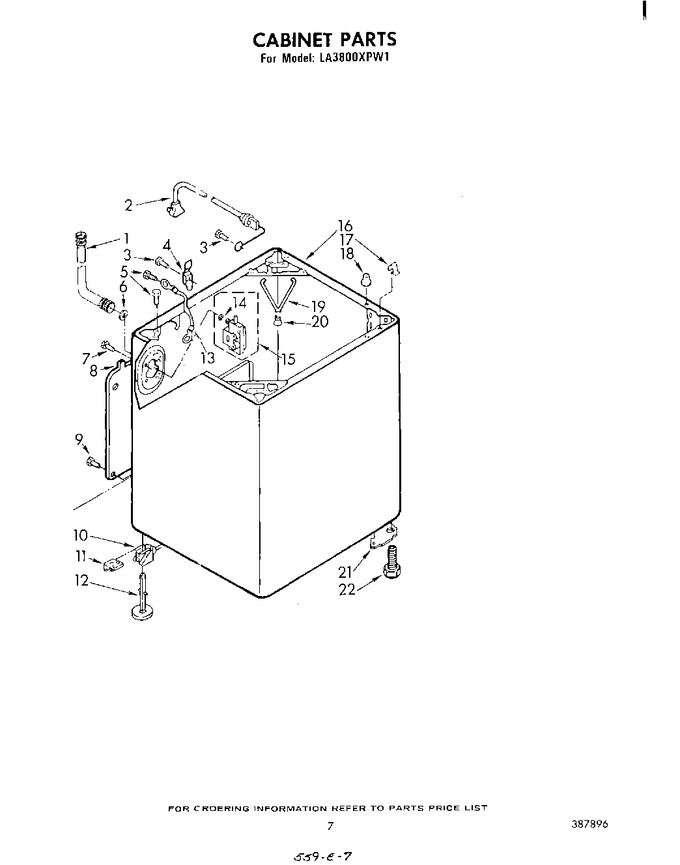

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP89503		Hose, Inlet (2)   (Replaces: 81339)			Immediately	$ 21.68
2	92667		Cord, Power (120 Volt)		Appelez-nous	-
3	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
4	18775		Hinge, R.h.		Appelez-nous	-
4	92657		Hinge, L.h.		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
6	WP16123		Washer, Rubber (4)   (Replaces: 16123)				$ 6.93
7	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
8	85279		Panel, Rear		Appelez-nous	-
9	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
10	359059		Leveling Link Assembly		Appelez-nous	-
11	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
12	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
13	364089		Wire, Ground		Appelez-nous	-
14	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
15	358277		Valve, Mixing (alt.)			Immediately	$ 78.87
15	660749		Valve, Mixing		Appelez-nous	-
15	358971		Valve, Mixing (alt.) (serviced Only As Complete Valves)		Appelez-nous	-
16	384793		White		Appelez-nous	-
17	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 11.41
18	98669		Locator, Top (2)				$ 12.03
19	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
20	358336		Snubber			Immediately	$ 4.80
21	356459		Plate, Gusset (2)		Appelez-nous	-
22	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
