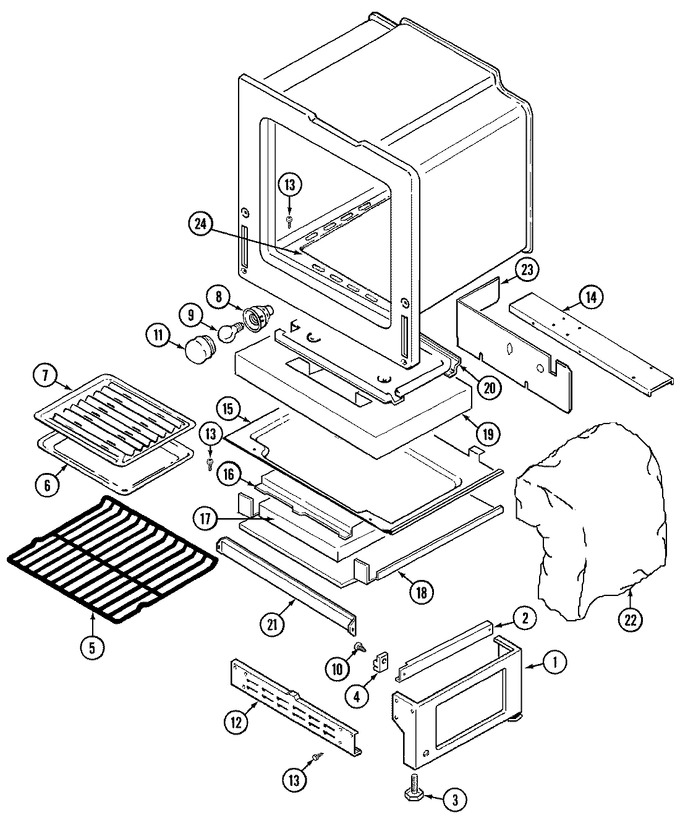

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4020W009-80		Pedestal	01	Appelez-nous	-
2	3406F028-51		Runner, Drawer	01	Appelez-nous	-
3	7101P316-60		Leg, Leveling	01	Appelez-nous	-
4	8004P025-60		Support, Drawer	01	Appelez-nous	-
5	WPW10282492		Rack   (Replaces: 7801P040-60)	01			$ 65.15
6	Y3401F02019		Pan, Broil	01	Appelez-nous	-
7	Y3413F01619		Insert, Broil Pan	01	Appelez-nous	-
8	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	01		Immediately	$ 66.10
9	40A15		Bulb, Oven   (Replaces: 7407P095-60)	01		Immediately	$ 1.98
10	7101P103-60		Screw	01	Appelez-nous	-
11	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	01		Immediately	$ 71.93
12	4020F001-80		Pedestal, Front/rear	01	Appelez-nous	-
13	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
14	3807F447-51		Support, Valve & Regulator	01	Appelez-nous	-
15	3804F109-51		Retainer, Bottom Insulation	01	Appelez-nous	-
16	3604F204-51		Shield, Heat	01	Appelez-nous	-
17	7002P140-60		Insulation, Drawer & Shield	01	Appelez-nous	-
18	3604F205-51		Shield, Drawer	01	Appelez-nous	-
19	4804F014-60		Insulation, Oven Bottom	01	Appelez-nous	-
20	3401F024-45		Pan, Bake Burner	01	Appelez-nous	-
21	3601F208-45		Baffle, Oven Front	01	Appelez-nous	-
22	4804F029-60		Insulation, Wrap	01	Appelez-nous	-
22	4804F030-60		Insulation, Back & Bottom	01	Appelez-nous	-
23	4005F429-51		Cover, Valve	01	Appelez-nous	-
24	3804F010-50		Retainer	01	Appelez-nous	-
24	4005F420-80		Cover, Leveling Leg	01	Appelez-nous	-
24	5504A001-19		Bottom, Oven	01	Appelez-nous	-
24	3601F229-45		Baffle, Oven Bottom	01	Appelez-nous	-
24	5185D275-60		Harness, Pedestal	01	Appelez-nous	-
