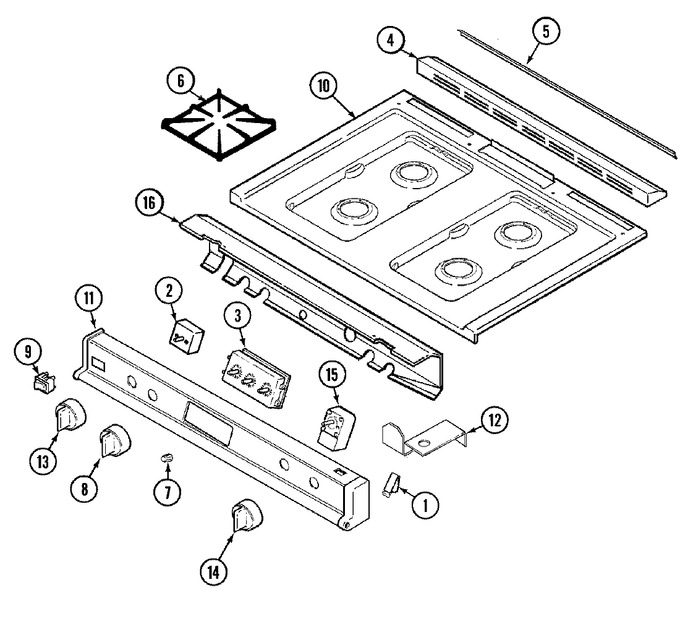

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P102-60 | Clip, Speed | 01 |
|
- | ||||
| 2 | 7403P236-60 | Switch, Selector | 01 |
|
- | ||||
| 3 | 3801F291-45 | Bracket, Clock | 01 |
|
- | ||||
| 3 | 7601P202-60 | Clock | 01 |
|
- | ||||
| 4 | 7724P051-60 | Cover, Vent Trim | 01 |
|
- | ||||
| 5 | 7201P040-60 | Gasket, Vent | 01 |
|
- | ||||
| 6 | 2003W027-00 | Grate (blk) | 03 |
|
- | ||||
| 6 | 2003W023-00 | Grate (blk) | 01 |
|
- | ||||
| 7 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 8 | 7733P065-60 | Knob, Valve | 01 |
|
- | ||||
| 9 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 10 | 2001F089-84 | Top, Main (alm) | 01 |
|
- | ||||
| 10 | 7706P301-60 | Extrusion, Filler | 01 |
|
- | ||||
| 11 | 7103P120-60 | Nut, Speed | 01 |
|
- | ||||
| 11 | 7712P149-60 | Panel, Manifold | 01 |
|
- | ||||
| 11 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 3801F318-51 | Bracket, Top | 01 |
|
- | ||||
| 13 | 7739P050-60 | Knob, Selector | 01 |
|
- | ||||
| 14 | 7731P088-60 | Knob, Thermostat | 01 |
|
- | ||||
| 15 | 7404P097-60 | Thermostat | 01 |
|
- | ||||
| 16 | 5125A312-60 | Harness, Loose/burner Box | 01 |
|
- | ||||
| 16 | 8112P106-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| 16 | 8113P045-60 | Manual, Use & Care | 01 |
|
- | ||||
| 16 | 5195D106-60 | Harness, B.b.b. | 01 |
|
- | ||||
| 16 | 74001717 | Cover, Manifold Pipe | 01 |
|
- | ||||
| 16 | 8113P026-60 | Insert, Instr Sheet (clock) | 01 |
|
- | ||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
