SELECT A DIAGRAM

01 - Cabinet


02 - Electric Components


03 - Gas Components


04 - Oven Door


05 - Oven Interior


06 - Sealed Burner


07 - Storage Drawer

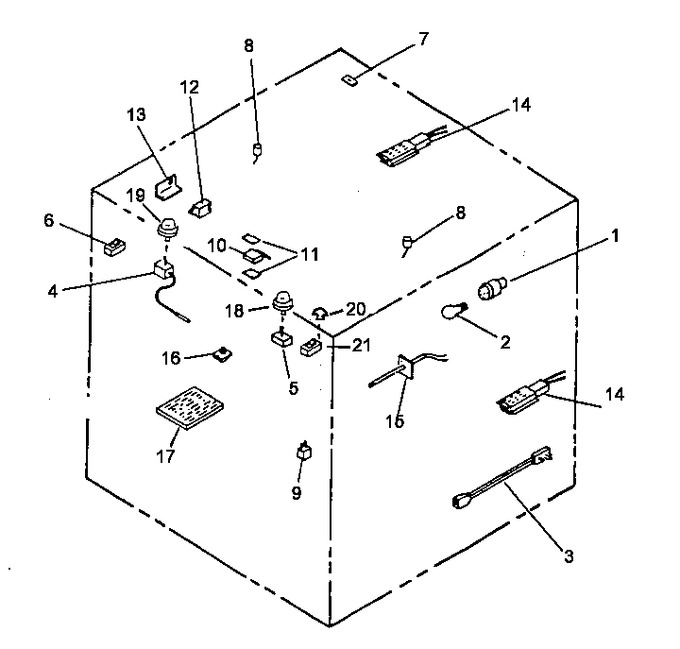

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74011278		Assy, Oven Light   (Replaces: Y0302471)				$ 101.56
1	WP74011278		Assy, Oven Light   (Replaces: Y0302472)				$ 101.56
2	Y0042175		Bulb, Light		Appelez-nous	-
3	Y0063518		Supply Cord		Appelez-nous	-
4	Y0303060		Oven Thermostat, Push To Turn		Appelez-nous	-
5	Y0300901		Switch, Selector		Appelez-nous	-
6	Y0063997		Switch, Rocker		Appelez-nous	-
7	Y0304365		Clip, Electrode		Appelez-nous	-
8	Y0304357		Assy, Electrode		Appelez-nous	-
9	Y0068333		Male Loading Plug		Appelez-nous	-
10	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
11	Y0091523		Insulation, Esm		Appelez-nous	-
12	Y0305451		Kit,spark Module(service)		Appelez-nous	-
12	Y0302477		Spark Module		Appelez-nous	-
13	0300231		Bracket		Appelez-nous	-
14	786324		Kit, Ignitor-bake/broil   (Replaces: Y0087699)			Immediately	$ 60.68
16	Y0300521		Switch,licon Gas Ignition				$ 57.33
17	Y0301277		Circuit Board, Erc-electric		Appelez-nous	-
18	0300707		Knob, Selector (blk)		Appelez-nous	-
19	0300706		Knob, Thermostat (blk)		Appelez-nous	-
20	Y0301209		Lens, Indicator Light, Red		Appelez-nous	-
21	0065822		Light Indicator		Appelez-nous	-
NI	0063780		Shield, Ignitor		Appelez-nous	-
NI	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
