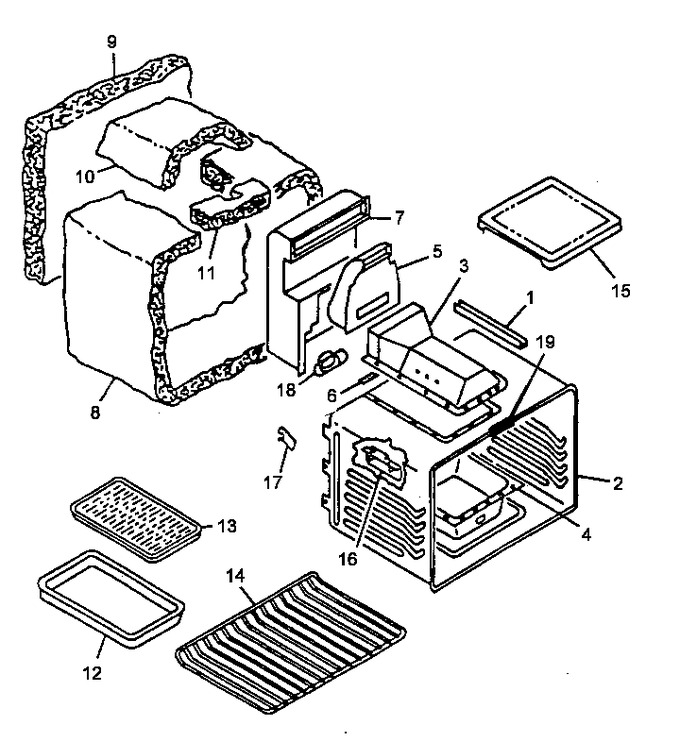

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0304019 | Channel, Broil Burner |
|
- | |||||
| 2 | 304079E | Oven Shell Assy |
|
- | |||||
| 4 | Y0304632 | Assy, Broil Chamber |
|
- | |||||
| 5 | 0303463 | Assy, Inner Flue |
|
- | |||||
| 6 | 0062754 | Gasket, Oven Back |
|
- | |||||
| 7 | 304578B | Dilution Flue |
|
- | |||||
| 8 | Y0062947 | Sub 41966, Insulation |
|
- | |||||
| 9 | Y0062945 | Sub 41966, Insulation |
|
- | |||||
| 10 | Y0062946 | Sub 41966, Insulation |
|
- | |||||
| 11 | Y0062944 | Sub 41966, Insulation |
|
- | |||||
| 12 | 4396923 | Pan, Broiler (Replaces: 11161CG) |
|
Immediately | $ 52.04 | ||||
| 13 | Y0304451 | Grid, Broiler (cg) |
|
- | |||||
| 14 | WP314763J | Rack,oven (Replaces: Y0067810) |
|
$ 70.11 | |||||
| 15 | 58625CG | Oven Bottom |
|
- | |||||
| 16 | 0062792 | Shield, Thermostat Bulb |
|
- | |||||
| 17 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 18 | Y0303111 | Bracket, Broil Orifice |
|
- | |||||
| 19 | 0300278 | Chip Cover |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 |
