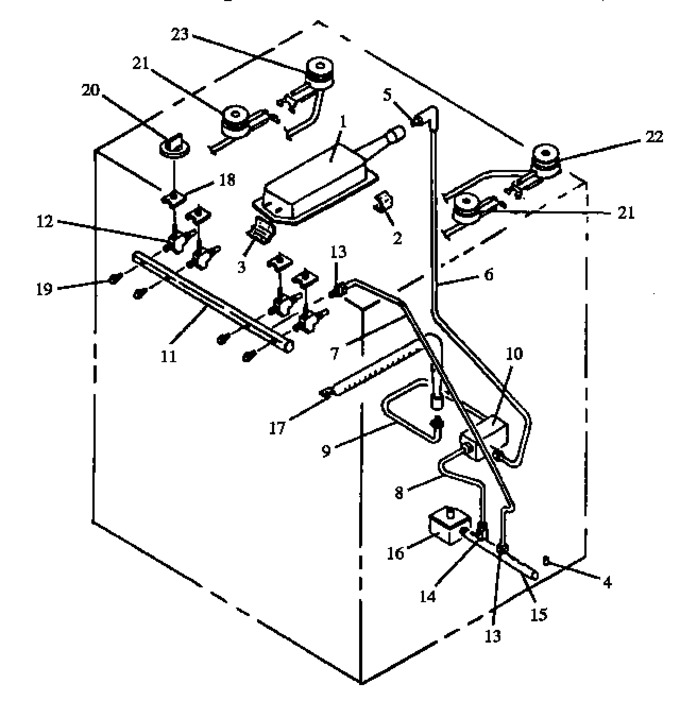

RST376/ALL (BOM: RST376/AL L) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y0060691	Assy, Br. Burner	Appelez-nous	-
2	0063785	Bracket, Ignitor	Appelez-nous	-
3	Y0060687	Bracket, Mtg. Br. Support	Appelez-nous	-
4	0042415	Pipe Plug 1/8-27 Npt	Appelez-nous	-
5	Y0063060	Orifice Spud, Nat. Gas No.50	Appelez-nous	-
5	Y0063061	Orifice, No.58 Lp	Appelez-nous	-
6	Y0300687	Kit, Orifice,tubing,brkt	Appelez-nous	-
7	Y0303220	Tubing, Inlet To Manifold	Appelez-nous	-
7	Y0300686	Tubing, Inlet To Manifold	Appelez-nous	-
8	Y0300684	Tubing, Inlet To Gas Valve	Appelez-nous	-
9	Y0300685	Tubing, Oven Burner	Appelez-nous	-
10	Y0300664	Valve, Gas	Appelez-nous	-
11	Y0302540	Assy., Manifold Pipe Tapped W/	Appelez-nous	-
11	0300628	Manifold Pipe	Appelez-nous	-
11	0303248	Manifold Pipe, Tapped W/bracke	Appelez-nous	-
12	Y0303048	Valve, (hi, Med, Adj. Low)	Appelez-nous	-
12	0302508	Valve , Top Burner	Appelez-nous	-
12	Y0301351	Valve, Top Burner	Appelez-nous	-
13	Y0303219	Fitting 1/4 Npt X 3/8 Comp	Appelez-nous	-
13	Y0301263	Fitting, 1/8``x 3/8``	Appelez-nous	-
14	Y0301361	Valve, Shut-off	Appelez-nous	-
15	0300479	Inlet Pipe	Appelez-nous	-
15	0303247	Inlet Pipe	Appelez-nous	-
16	Y0063684	Regulator-5``/10`` Side Inlet	Appelez-nous	-
17	Y0063709	Oven Burner	Appelez-nous	-
18	Y0300521	Switch,licon Gas Ignition			$ 57.33
19	Y0056115	Surface Valve Bolt& Gasket	Appelez-nous	-
20	0300706	Knob, Thermostat (blk)	Appelez-nous	-
20	0300707	Knob, Selector (blk)	Appelez-nous	-
20	Y0300705	Knob, Top Burner (blk)	Appelez-nous	-
NI	Y0068513	Clamp, Wire-insulate	Appelez-nous	-
NI	0302509	Tubing, Inlet To Manifold, Lef	Appelez-nous	-
