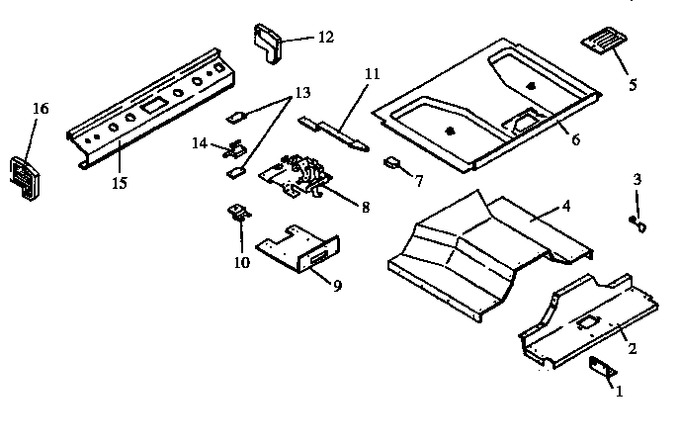

Diagram #	Part Number	Description	Availability	Ships	Price
1	0300231	Bracket	Appelez-nous	-
2	Y0300626	Insulation Retainer, Top Frnt.	Appelez-nous	-
3	Y0068513	Clamp, Wire-insulate	Appelez-nous	-
4	Y0300627	Insulation Retainer, Top	Appelez-nous	-
5	0062840	Cover Plate Latch	Appelez-nous	-
6	302482E	Burner Box	Appelez-nous	-
7	0300734	Knob, Latch	Appelez-nous	-
8	Y0063733	Latch Assembly	Appelez-nous	-
9	Y0058918	Bracket, Latch Mtg.	Appelez-nous	-
10	Y0068091	Bracket, Switch Mounting	Appelez-nous	-
11	301127B	Latch Arm	Appelez-nous	-
12	0300691	End Cap, Rh	Appelez-nous	-
12	0302985	End Cap, Control Panel, Rh	Appelez-nous	-
13	Y0091523	Insulation, Esm	Appelez-nous	-
14	Y0065780	Switch, Clean Circuit			$ 11.77
15	0303241	Control Panel	Appelez-nous	-
16	0302984	End Cap, Control Panel, Lh	Appelez-nous	-
16	0300690	End Cap, Lh	Appelez-nous	-
NI	Y0303187	Plenum, Top	Appelez-nous	-
NI	Y0065664	Screw, Tt 23 4-40 X 5/8	Appelez-nous	-
NI	0303568	Plenum, Top Front	Appelez-nous	-
NI	Y0303208	Plenum, Wrapper R.h.	Appelez-nous	-
NI	Y0041769	Screw 6 32x5/16 Ph Fh	Appelez-nous	-
NI	Y0303185	Plenum, Wrapper L.h.	Appelez-nous	-
NI	0303210	Wrapper Rh Side	Appelez-nous	-
NI	Y0303186	Plenum, Bottom	Appelez-nous	-
