SELECT A DIAGRAM

01 - Cover


02 - Splasher/light


03 - Control Panel


04 - Lower Body


05 - Upper Body


06 - Top/drawer


07 - Lower Door


08 - Upper Door

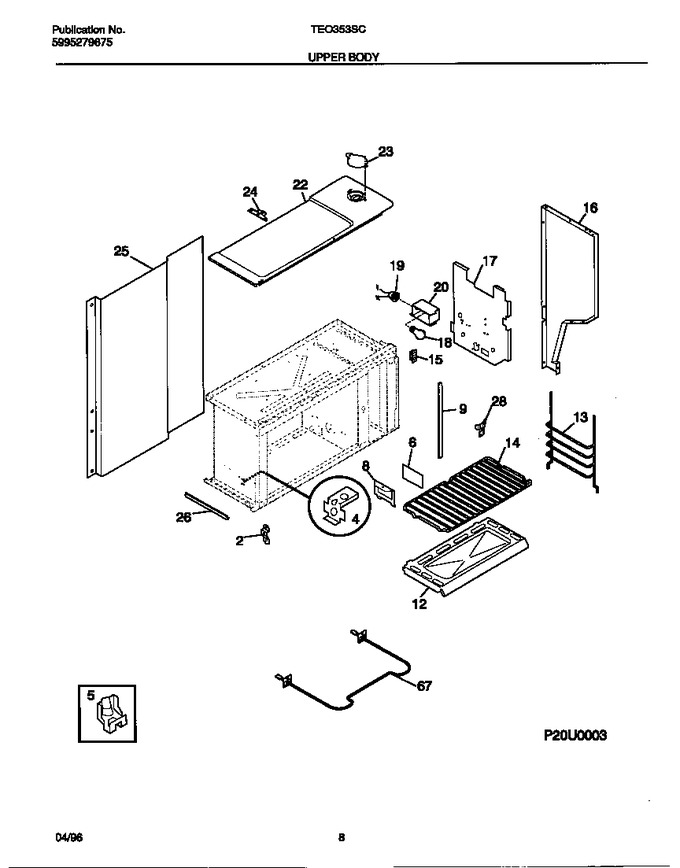

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303051166		Hinge-oven Door		Appelez-nous	-
4	08011665		Plate-bottom Hinge		Appelez-nous	-
5	5303284616		Clip-thermo Bulb				$ 9.86
6	08011668		Glass-oven Light Lens		Appelez-nous	-
8	08011669		Cover-light, Upper		Appelez-nous	-
9	5303934092		Seal-door		Appelez-nous	-
12	08016605		Bottom-oven		Appelez-nous	-
13	5303934091		Glide-oven Rack		Appelez-nous	-
14	08011675		Rack-oven, Flat		Appelez-nous	-
15	08011680		Catch-door		Appelez-nous	-
16	3051263		Panel-bodyside, White, Rh		Appelez-nous	-
16	5303269987		Panel-bodyside, White, Lh (not Illustrated)		Appelez-nous	-
17	5303208706		Shield-wool		Appelez-nous	-
18	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
19	3014073		Socket-light/lamp, Oven		Appelez-nous	-
20	5303290773		Box-light		Appelez-nous	-
22	3131625		Panel-top, Upper		Appelez-nous	-
23	08067732		Cover-outlet		Appelez-nous	-
24	5303290130		Hinge-oven Door, Upper Oven		Appelez-nous	-
25	5303290095		Back-main		Appelez-nous	-
26	5303293168		Angle-stiffener		Appelez-nous	-
28	316012800		Strike-door		Appelez-nous	-
67	5303307010		Element-bake		Appelez-nous	-
*62971	3015588		Insulation, Oven Top		Appelez-nous	-
*62972	3015590		Insulation, Oven Bottom		Appelez-nous	-
*62973	3015591		Insulation, Oven Wrapper		Appelez-nous	-
*62974	3204440		Reflector, Aluminum Foil		Appelez-nous	-
*62976	5303051818		Screw, Wave Guide/door Hinge, 8, 18 X 1/2		Appelez-nous	-
*62977	5303203651		Fuse, Thermal Cutout				$ 77.86
