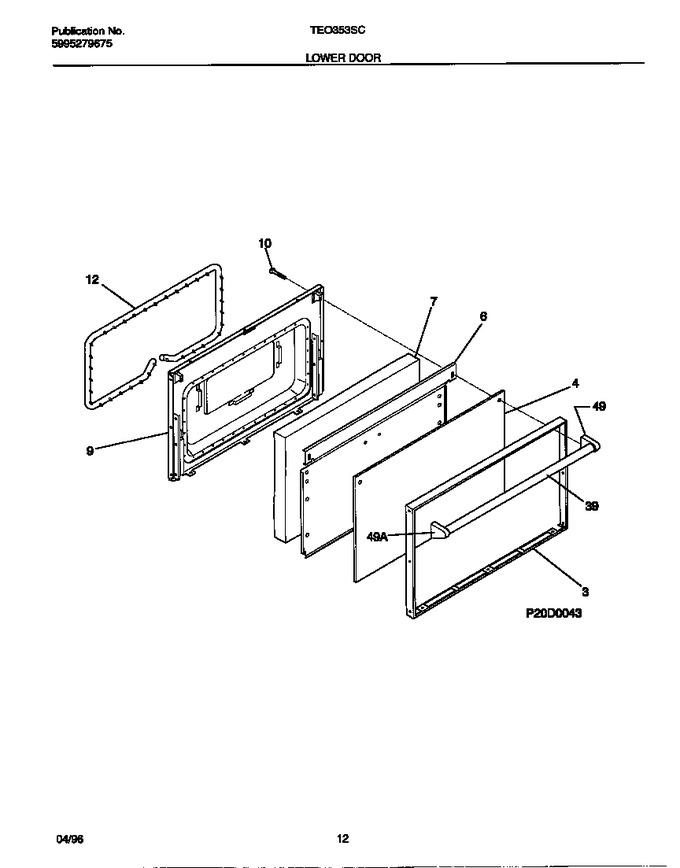

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
6	316091402		Shield-wool		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
9	316066611		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
39	316008300		Handle-door, Black, Oven		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*62981	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*62982	316065300		Plate Warning/caution		Appelez-nous	-
*62983	316089600		Spacer-handle, (2)		Appelez-nous	-
*62984	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*62985	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
49A	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
49B	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
