01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Maker & Bin


09 - Shelves & Accessories


10 - Unit Compartment & System

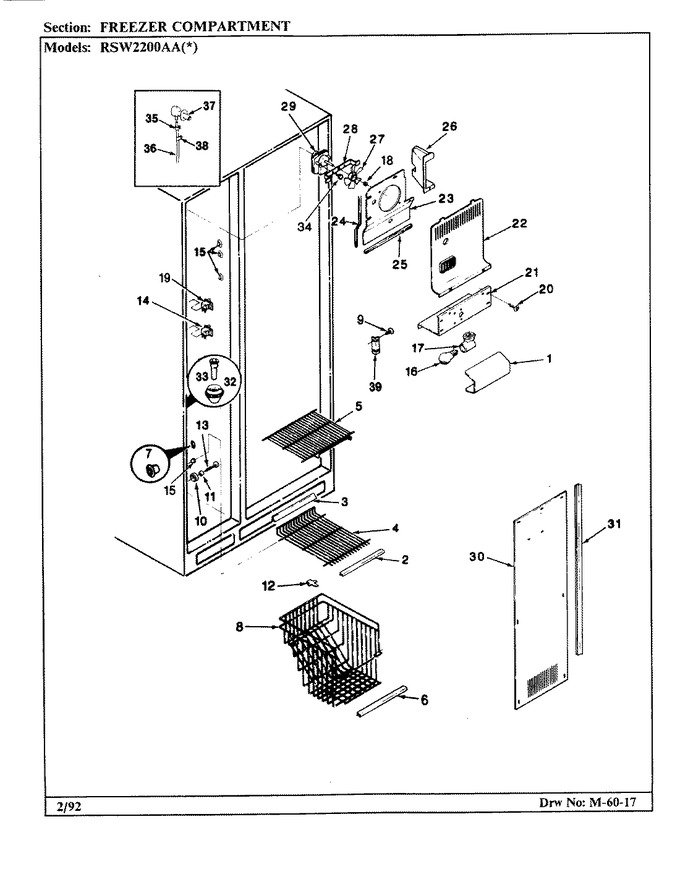

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67292-1		Shield, Light		Appelez-nous	-
2	67176-1		Trim, Frz. Shelf Front		Appelez-nous	-
3	67177-1		Trim, Frz. Shelf Front		Appelez-nous	-
4	67178-7		Shelf, Frz. (no.2,3,4,5)		Appelez-nous	-
5	67179-3		Shelf, Frz.		Appelez-nous	-
6	67176-13		Trim		Appelez-nous	-
7	67685-1		Retainer		Appelez-nous	-
8	69353-1		Basket, Frz.		Appelez-nous	-
9	400026-1		Screw		Appelez-nous	-
10	67124-1		Space Roller		Appelez-nous	-
11	67123-1		Roller,wheel Basket		Appelez-nous	-
12	67488-2		Clip, Stop		Appelez-nous	-
13	65275-19		Screw		Appelez-nous	-
14	W11384469		Switch, Light   (Replaces: 66987-1)			Immediately	$ 33.51
15	67466-1		Cup, Shelf		Appelez-nous	-
16	W11679940		Bulb, Light   (Replaces: 31956-1)			Immediately	$ 10.17
17	60577-1		Socket, Light		Appelez-nous	-
18	420092-900		Washer, Spring		Appelez-nous	-
19	68058-1		Switch, Interlock		Appelez-nous	-
20	400015-12		Screw		Appelez-nous	-
21	67296-1		Box Ice Disp Mot		Appelez-nous	-
22	66325-22		Seal,fan Shield		Appelez-nous	-
22	67225-1		Shield, Fan		Appelez-nous	-
23	22715-6		Rivet		Appelez-nous	-
23	67297-3		Cover, Coil		Appelez-nous	-
24	66325-14		Seal, Foam Tray		Appelez-nous	-
25	66325-21		Seal (44``)		Appelez-nous	-
26	67353-1		Shield, Air Directional		Appelez-nous	-
27	52120-1		Blade, Fan Frzr.		Appelez-nous	-
28	64856-2		Bracket, Fan Motor		Appelez-nous	-
29	69047-1		Wire Harness Frz.		Appelez-nous	-
29	55735-8		Motor,evaporator Fan		Appelez-nous	-
30	67335-4		Cover, Coil (lower)		Appelez-nous	-
30	W11772394		Screw   (Replaces: 400021-1)			Immediately	$ 10.94
30	400015-12		Screw		Appelez-nous	-
31	67562-1		Coil Cover, Gasket		Appelez-nous	-
32	52526-1		Grommet		Appelez-nous	-
33	26527-9		Drain Tube		Appelez-nous	-
34	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
35	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
36	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-2)				$ 11.19
37	68307-2		Grommet, Water Entry		Appelez-nous	-
38	WP488366		Clamp, Feeder Tube   (Replaces: 23197-8)				$ 10.06
39	67288-1		Bracket, Mounting		Appelez-nous	-
