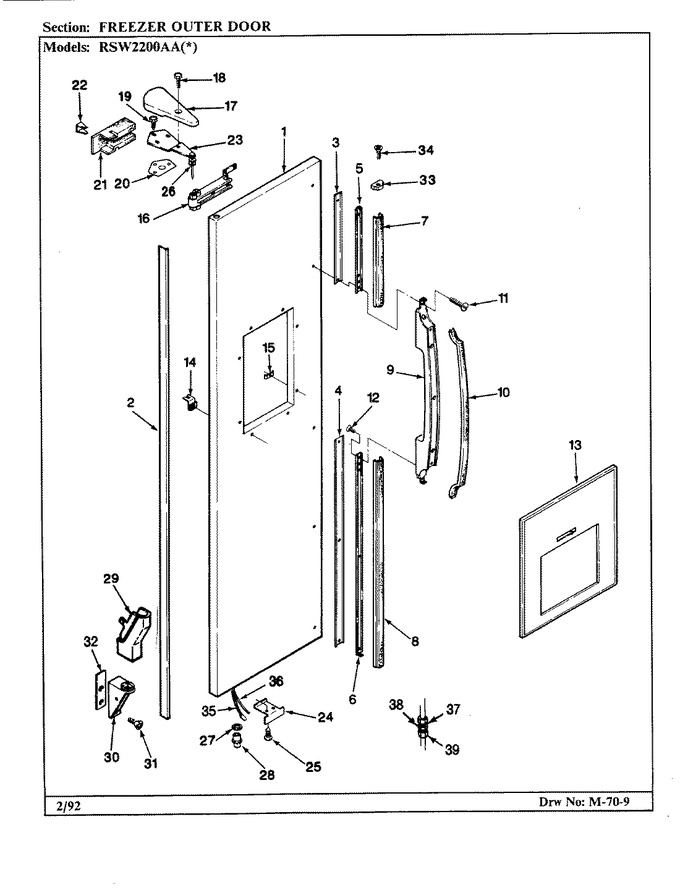

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72041-15-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	66651-4		Trim, Door		Appelez-nous	-
3	67746-6		Shim		Appelez-nous	-
4	67746-7		Shim		Appelez-nous	-
5	67156-3		Bracket, Handle		Appelez-nous	-
6	67156-4		Bracket, Handle		Appelez-nous	-
7	67805-6		Trim, Handle Ext. (blk)		Appelez-nous	-
8	67805-7		Trim, Handle Ext. (blk)		Appelez-nous	-
9	67777-1		Handle		Appelez-nous	-
9	69816-1		Shim Handle		Appelez-nous	-
10	65275-44		Screw		Appelez-nous	-
10	67882-1		Insert, Handle (blk)		Appelez-nous	-
11	65275-29		Screw,handle Bottom (hex Head)		Appelez-nous	-
11	66799-3		Clip, Handle Screw		Appelez-nous	-
12	65275-31		Screw, Bracket To Handle		Appelez-nous	-
13	405004-103		Screw		Appelez-nous	-
13	67580-4		Escutcheon Assy.		Appelez-nous	-
14	53732-2		U-nut Grounding		Appelez-nous	-
15	66799-1		Achor, Screw		Appelez-nous	-
16	54485-2		Door Closure		Appelez-nous	-
17	67229-4		Cover, Upper Hinge(wht.)		Appelez-nous	-
18	403060-1		Screw, Hinge Cover		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	67645-1		Insulation Door		Appelez-nous	-
22	52614-1		Bracket, Closer		Appelez-nous	-
23	67456-4		Hinge, Top		Appelez-nous	-
24	69022-1		Stop, Door		Appelez-nous	-
25	67386-1		Clip, Handle		Appelez-nous	-
25	65275-48		Screw		Appelez-nous	-
26	52185-2		Washer		Appelez-nous	-
27	67483-3		Washer, Door Spacer			Immediately	$ 45.86
28	68976-1		Pin, Lower Hinge		Appelez-nous	-
29	65275-47		Screw, Hinge Cover (black)		Appelez-nous	-
29	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
30	68975-1		Hinge, Lower		Appelez-nous	-
31	65275-51		Screw, Lower Hinge		Appelez-nous	-
32	65275-59		Screw		Appelez-nous	-
32	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
32	69031-1		Shim		Appelez-nous	-
33	67380-3		Endcap, Handle		Appelez-nous	-
34	414004-7		Screw, Handle End Cap		Appelez-nous	-
35	67913-1		Wire Harness, Door		Appelez-nous	-
36	WPW10426709		Tubing Plastic-door Panel   (Replaces: 67187-1)				$ 126.83
37	55604-1		Nut, Compression (5/16``)		Appelez-nous	-
38	67566-2		Union Reducing		Appelez-nous	-
39	67610-1		Nut, Compression (3/8``)		Appelez-nous	-
