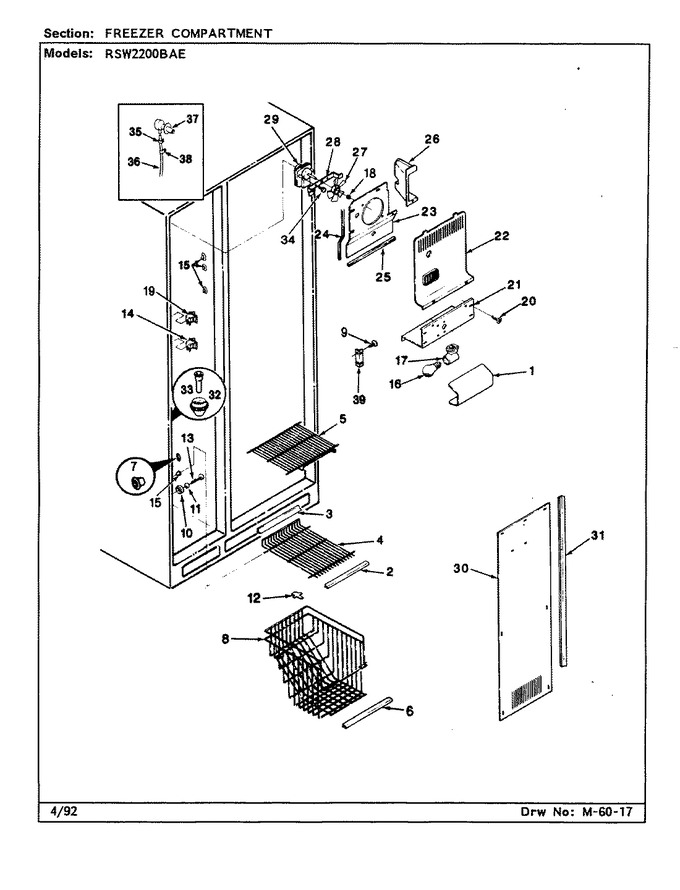

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67292-1 | Shield, Light | - |
|
- | ||||
| 2 | 67176-11 | Trim, Frz. Shelf Front | - |
|
- | ||||
| 3 | 67177-4 | Trim, Frz. Shelf (rear) | - |
|
- | ||||
| 4 | 67178-7 | Shelf, Frz. (no.2,3,4,5) | - |
|
- | ||||
| 5 | 67179-3 | Shelf, Frz. | - |
|
- | ||||
| 6 | 67176-14 | Trim | - |
|
- | ||||
| 7 | 67685-1 | Retainer | - |
|
- | ||||
| 8 | 69353-1 | Basket, Frz. | - |
|
- | ||||
| 9 | 400026-1 | Screw | - |
|
- | ||||
| 10 | 67124-1 | Space Roller | - |
|
- | ||||
| 11 | 67123-1 | Roller,wheel Basket | - |
|
- | ||||
| 12 | 67488-2 | Clip, Stop | - |
|
- | ||||
| 13 | 65275-19 | Screw | - |
|
- | ||||
| 14 | W11384469 | Switch, Light (Replaces: 66987-1) | - |
|
Immediately | $ 33.51 | |||
| 15 | 67466-1 | Cup, Shelf | - |
|
- | ||||
| 16 | W11679940 | Bulb, Light (Replaces: 31956-1) | - |
|
Immediately | $ 10.17 | |||
| 17 | 60577-1 | Socket, Light | - |
|
- | ||||
| 18 | 69047-1 | Wire Harness Frz. | - |
|
- | ||||
| 18 | 420092-900 | Washer, Spring | - |
|
- | ||||
| 19 | 68058-1 | Switch, Interlock | - |
|
- | ||||
| 20 | 400015-12 | Screw | - |
|
- | ||||
| 21 | 67296-1 | Box Ice Disp Mot | - |
|
- | ||||
| 22 | 66325-22 | Seal,fan Shield | - |
|
- | ||||
| 22 | 67225-1 | Shield, Fan | - |
|
- | ||||
| 23 | 67297-3 | Cover, Coil | - |
|
- | ||||
| 23 | 22715-6 | Rivet |
|
- | |||||
| 24 | 66325-14 | Seal, Foam Tray | - |
|
- | ||||
| 25 | 66325-21 | Seal (44``) | - |
|
- | ||||
| 26 | 67353-1 | Shield, Air Directional | - |
|
- | ||||
| 27 | 52120-1 | Blade, Fan Frzr. | - |
|
- | ||||
| 28 | 56142-1 | Nut, Motor Box | - |
|
- | ||||
| 28 | 64856-2 | Bracket, Fan Motor | - |
|
- | ||||
| 29 | 55735-8 | Motor,evaporator Fan | - |
|
- | ||||
| 29 | 53732-2 | U-nut Grounding | - |
|
- | ||||
| 30 | 67335-4 | Cover, Coil (lower) | - |
|
- | ||||
| 30 | 400015-12 | Screw | - |
|
- | ||||
| 30 | W11772394 | Screw (Replaces: 400021-1) | - |
|
Immediately | $ 10.94 | |||
| 31 | 67562-1 | Coil Cover, Gasket | - |
|
- | ||||
| 32 | 52526-1 | Grommet | - |
|
- | ||||
| 33 | 26527-9 | Drain Tube | - |
|
- | ||||
| 34 | WP488729 | Screw (Replaces: 9986-45) | - |
|
Immediately | $ 7.01 | |||
| 35 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | - |
|
$ 9.95 | ||||
| 36 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | - |
|
$ 11.19 | ||||
| 37 | 68307-2 | Grommet, Water Entry | - |
|
- | ||||
| 38 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) | - |
|
$ 10.06 | ||||
| 39 | 67288-1 | Bracket, Mounting | - |
|
- |
