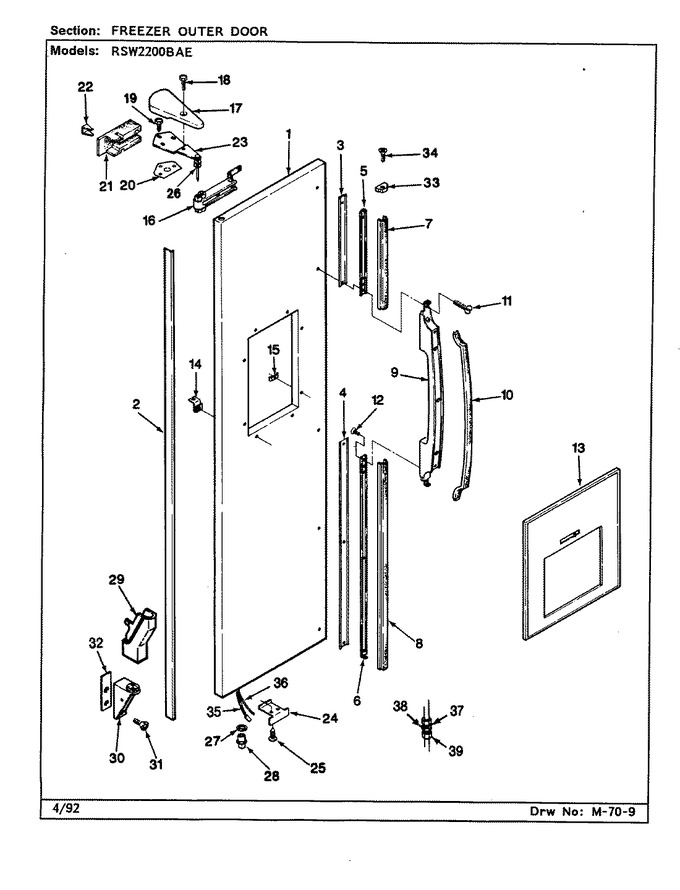

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72041-15-WW | Panel, Frz. Door (wht) | - |
|
- | ||||
| 2 | 66651-4 | Trim, Door | - |
|
- | ||||
| 3 | 67746-6 | Shim | - |
|
- | ||||
| 4 | 67746-7 | Shim | - |
|
- | ||||
| 5 | 67156-3 | Bracket, Handle | - |
|
- | ||||
| 6 | 67156-4 | Bracket, Handle | - |
|
- | ||||
| 7 | 67805-10 | Trim Ext Upper | - |
|
- | ||||
| 8 | 67805-11 | Trim Ext Lwr | - |
|
- | ||||
| 9 | 69816-1 | Shim Handle |
|
- | |||||
| 9 | 67777-1 | Handle | - |
|
- | ||||
| 10 | 67882-3 | Insert Handle | - |
|
- | ||||
| 10 | 65275-44 | Screw | - |
|
- | ||||
| 11 | 66799-3 | Clip, Handle Screw | - |
|
- | ||||
| 11 | 65275-29 | Screw,handle Bottom (hex Head) | - |
|
- | ||||
| 12 | 65275-31 | Screw, Bracket To Handle | - |
|
- | ||||
| 13 | 405004-103 | Screw | - |
|
- | ||||
| 13 | 67580-7 | Escutcheon Assy. | - |
|
- | ||||
| 14 | 53732-2 | U-nut Grounding | - |
|
- | ||||
| 15 | 66799-1 | Achor, Screw | - |
|
- | ||||
| 16 | 54485-2 | Door Closure | - |
|
- | ||||
| 17 | 69518-4 | Cover, Upper Hinge (wht) | - |
|
- | ||||
| 18 | 403060-1 | Screw, Hinge Cover | - |
|
- | ||||
| 19 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 20 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 21 | 67645-1 | Insulation Door | - |
|
- | ||||
| 22 | 52614-1 | Bracket, Closer | - |
|
- | ||||
| 23 | 67456-4 | Hinge, Top | - |
|
- | ||||
| 24 | 69022-2 | Stop, Door | - |
|
- | ||||
| 25 | 67386-1 | Clip, Handle | - |
|
- | ||||
| 25 | 65275-48 | Screw | - |
|
- | ||||
| 26 | 52185-2 | Washer | - |
|
- | ||||
| 27 | 67483-3 | Washer, Door Spacer | - |
|
Immediately | $ 45.86 | |||
| 28 | 68976-1 | Pin, Lower Hinge | - |
|
- | ||||
| 29 | 65275-56 | Screw | - |
|
- | ||||
| 29 | 68978-4 | Cover, Lower Hinge (wht) | - |
|
- | ||||
| 30 | 68975-3 | Hinge, Lower | - |
|
- | ||||
| 31 | 65275-51 | Screw, Lower Hinge | - |
|
- | ||||
| 32 | 65275-59 | Screw | - |
|
- | ||||
| 32 | 67874-1 | Tapping Plate, Lower Hinge | - |
|
- | ||||
| 32 | 69031-4 | Shim | - |
|
- | ||||
| 33 | 67380-3 | Endcap, Handle | - |
|
- | ||||
| 34 | 414004-7 | Screw, Handle End Cap | - |
|
- | ||||
| 35 | 67913-1 | Wire Harness, Door | - |
|
- | ||||
| 36 | WPW10426709 | Tubing Plastic-door Panel (Replaces: 67187-1) | - |
|
$ 126.83 | ||||
| 37 | 55604-1 | Nut, Compression (5/16``) | - |
|
- | ||||
| 38 | 67566-2 | Union Reducing | - |
|
- | ||||
| 39 | 67610-1 | Nut, Compression (3/8``) | - |
|
- |
