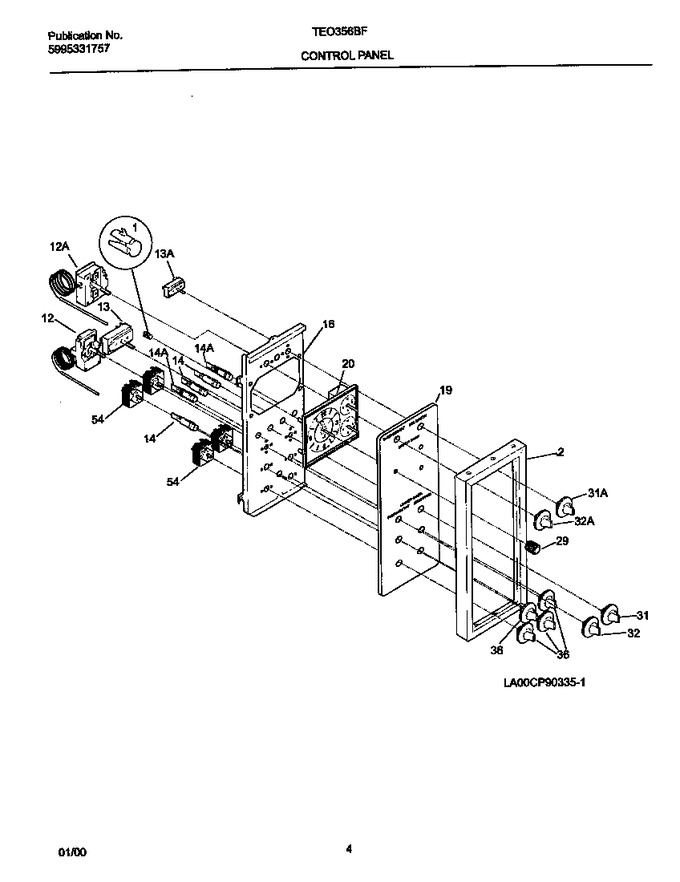

04 - Control Panel


05 - Upper Body


06 - Top/drawer


07 - Upper Door


08 - Lower Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011713		Fastener-clock		Appelez-nous	-
2	316013200		Trim-frame		Appelez-nous	-
12	5303051320		Thermostat-oven Lower		Appelez-nous	-
12	5303202782		Thermostat-oven Upper		Appelez-nous	-
13	5303051315		Switch-selector, Lower		Appelez-nous	-
13	3051316		Switch-selector, 5 Pos, Upper		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
14	5303091462		Light/lamp,indicator ,clear ,250 V ,(2)		Appelez-nous	-
16	318005801		Plate, Instrument Mtg		Appelez-nous	-
19	316007505		Panel-control, Glass		Appelez-nous	-
20	316007601		Clock/timer, Radial		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
31	316019168		Knob-selector		Appelez-nous	-
31	316019169		Knob-selector		Appelez-nous	-
32	316019166		Knob-thermostat, Lower		Appelez-nous	-
32	316019163		Knob-thermostat, Upper		Appelez-nous	-
36	318017010		Knob-control		Appelez-nous	-
54	5303935086		Switch-surface Unit, (4)   (Replaces: 318120504)			Immediately	$ 51.95
*85364	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
