SELECT A DIAGRAM

01 - Cover


02 - Lower Body


03 - Splasher


04 - Control Panel


05 - Upper Body


06 - Top/drawer


07 - Upper Door


08 - Lower Door

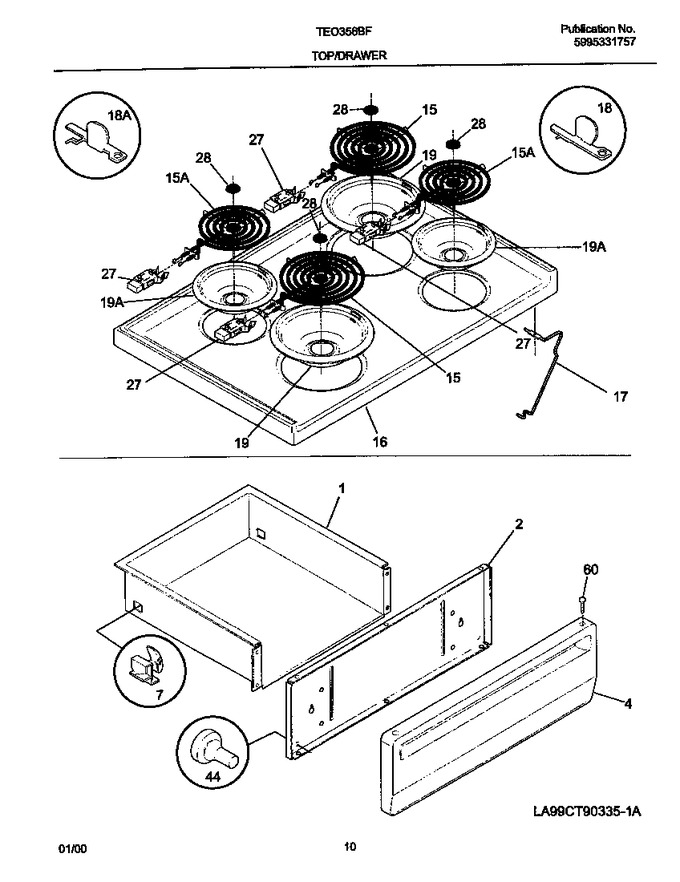

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
7	316066900		Rod-maintop Support				$ 66.31
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
15	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
19	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5308067828		Medallion, Surface Element		Appelez-nous	-
*85365	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
16A	3013512		Main Top-almond		Appelez-nous	-
16B	5303013511		Main Top (white)		Appelez-nous	-
4A	316084405		Panel-drawer, White		Appelez-nous	-
4B	316084406		Panel-drawer, Almond		Appelez-nous	-
60A	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
60B	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
60C	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
