Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216079803 Gasket-door/lid, Grey Appelez-nous -
2 5303925107 Lock Assy Appelez-nous -
5 297147700 Key, Lock   (Replaces: 216388700) In-Stock Immediately $ 7.57

9 216057604 Panel-inner Door\lid, White Appelez-nous -
10 08009395 Plug, Hole Appelez-nous -
11 216129802 Panel-outer Door/lid,white Appelez-nous -
12 216151000 Insert-handle Appelez-nous -
18 216446600 Handle Special Order $ 43.42

27 5303212828 Screw, Panel Special Order $ 16.63

40 5309948647 Fastener, Handle Appelez-nous -
50 5303308306 Plug-button Appelez-nous -
71 5303302714 Screw, 8, 18 X 3/4, (2) Appelez-nous -
*35560 5303917276 Insulation Special Order $ 330.91


    View Diagram in Separate Window     Print Icon   Print Part List

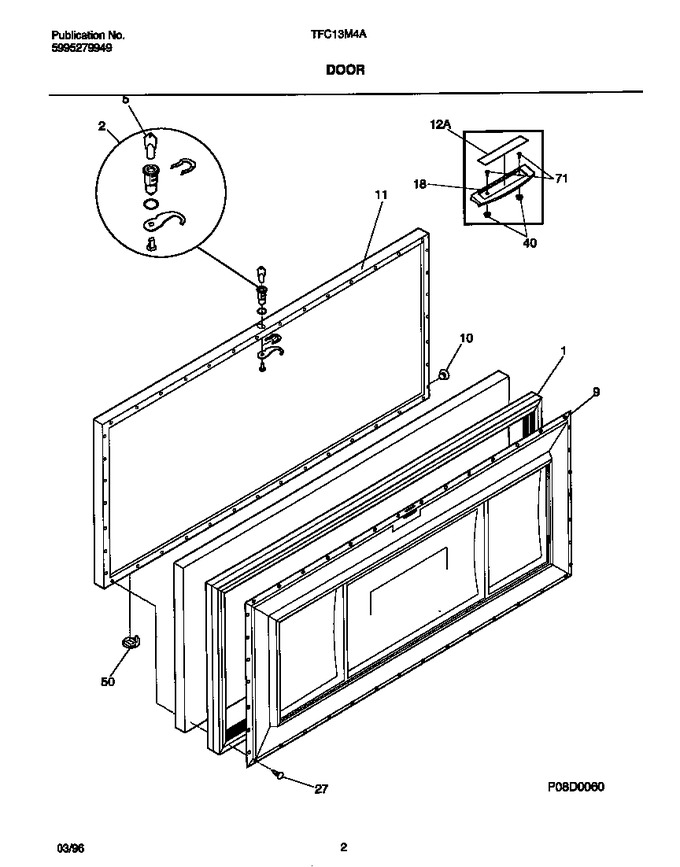

Diagram for TFC13M4AW3
