SELECT A DIAGRAM

01 - Cover


02 - Door

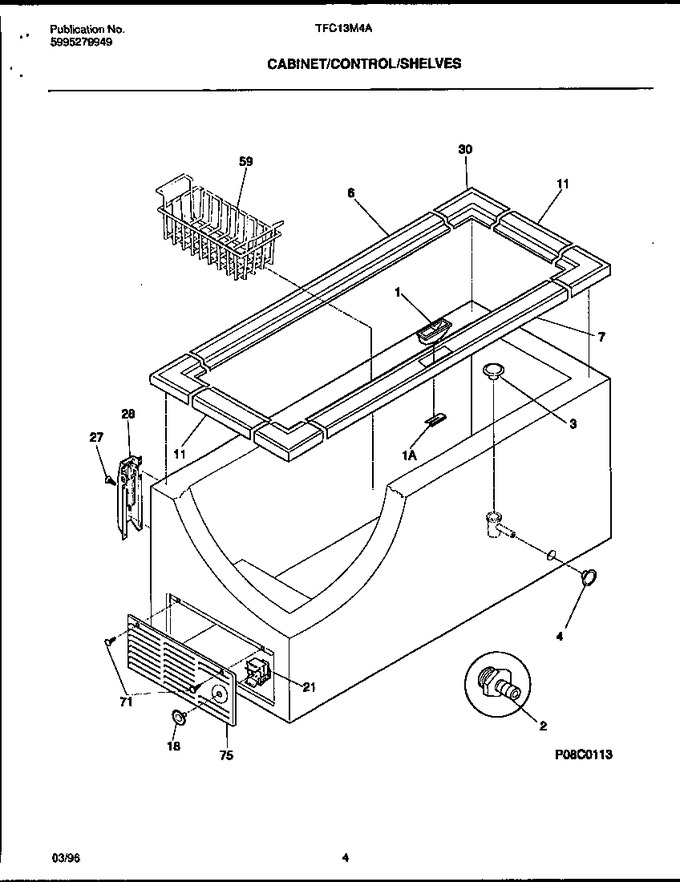

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303210240		Latch-door		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216110903		Breaker, Grey, Hinge Side		Appelez-nous	-
7	216111503		Breaker, Grey, Lock Side		Appelez-nous	-
11	216110803		Breaker-ends, Grey		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216039600		Hinge		Appelez-nous	-
30	216110703		Breaker-corners, Grey		Appelez-nous	-
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Access Panel				$ 103.01
*35561	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
