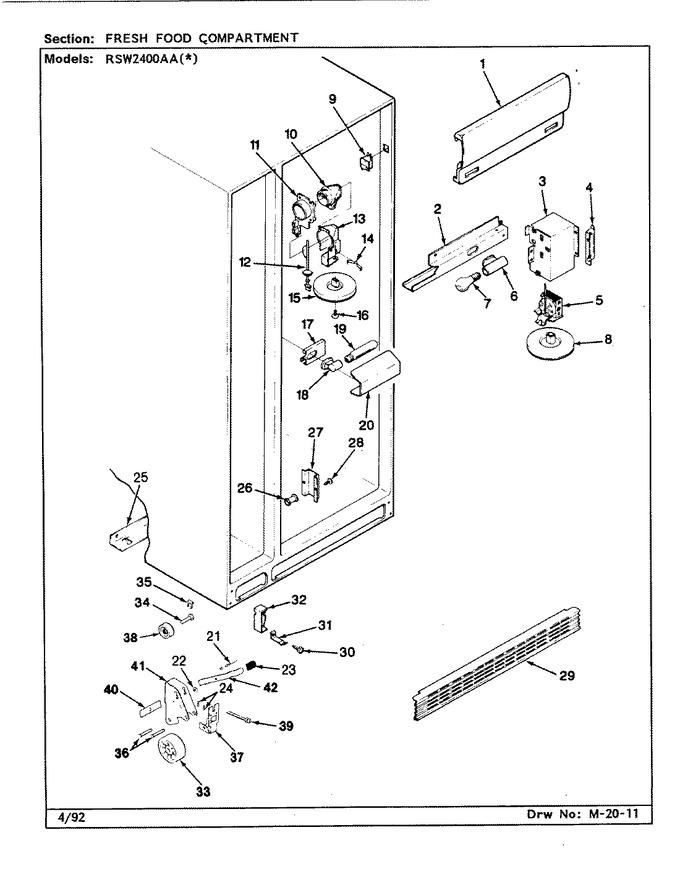

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67113-4 | Shield, Light | 1 |
|
- | ||||
| 1 | 67476-4 | Insert, Light Shield | 1 |
|
- | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | 1 |
|
$ 6.98 | ||||
| 2 | 67188-2 | Light Housing | 1 |
|
- | ||||
| 3 | 67126-1 | Housing, Temperature Control | 1 |
|
- | ||||
| 4 | 67125-1 | Support, Light Shield | 1 |
|
- | ||||
| 4 | 401012-1 | Screw, Control Mounting | 1 |
|
- | ||||
| 5 | WP489478 | Screw (Replaces: 400017-1) | 1 |
|
$ 6.98 | ||||
| 5 | 52884-11 | Control, Temperature | 1 |
|
- | ||||
| 6 | 55042-2 | Clip | 1 |
|
- | ||||
| 6 | 29813-1 | Socket, Light | 1 |
|
- | ||||
| 7 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) | 1 |
|
Immediately | $ 1.98 | |||
| 8 | 67145-1 | Knob, Control | 1 |
|
- | ||||
| 9 | W11384469 | Switch, Light (Replaces: 66987-1) | 1 |
|
Immediately | $ 33.51 | |||
| 10 | 58767-1 | Insulation, Housing | 1 |
|
- | ||||
| 11 | 67688-1 | Plug Button | 1 |
|
- | ||||
| 12 | 67355-1 | Damper, Frz. Control | 1 |
|
- | ||||
| 13 | 67354-1 | Housing, Frz. Control | 1 |
|
- | ||||
| 14 | 52648-1 | Spring, Baffle | 1 |
|
- | ||||
| 15 | 67145-2 | Knob, Control | 1 |
|
- | ||||
| 16 | 400001-1 | Screw | 1 |
|
- | ||||
| 17 | 67408-1 | Wire Harness, Waist | 1 |
|
- | ||||
| 17 | WP489478 | Screw (Replaces: 400017-1) | 1 |
|
$ 6.98 | ||||
| 17 | 67243-1 | Base, Light (meat) | 1 |
|
- | ||||
| 18 | 29814-2 | Receptacle, Light | 1 |
|
- | ||||
| 18 | 401012-1 | Screw, Control Mounting | 1 |
|
- | ||||
| 19 | 20174-6 | Bulb, Light | 1 |
|
- | ||||
| 20 | 67242-1 | Shield, Light | 1 |
|
- | ||||
| 21 | WP210720 | Rivet (Replaces: 26397-2) | 1 |
|
$ 12.14 | ||||
| 22 | 420003-905 | Lockwasher | 1 |
|
- | ||||
| 23 | 67528-1 | Handle, Lock Lever | 1 |
|
- | ||||
| 24 | 62581-1 | Clip, Retaining Wheel (rear) | 1 |
|
- | ||||
| 25 | 3400518 | Screw (Replaces: 65275-42) | 1 |
|
$ 11.68 | ||||
| 25 | 67255-3 | Rail, Horizontal Support | 1 |
|
- | ||||
| 26 | 67684-1 | Tunnel, Air Return | 1 |
|
- | ||||
| 27 | 62128-1 | Air Deflector | 1 |
|
- | ||||
| 28 | 28013-2 | Rivet, Air Tunnel | 1 |
|
- | ||||
| 29 | 67023-5 | Grill, Kickplate | 1 |
|
- | ||||
| 30 | WP489478 | Screw (Replaces: 400017-1) | 1 |
|
$ 6.98 | ||||
| 31 | 67259-1 | Clip, Kickplate | 1 |
|
- | ||||
| 32 | 67854-1 | End Cap (r) | 1 |
|
- | ||||
| 32 | WP489478 | Screw (Replaces: 400017-1) | 1 |
|
$ 6.98 | ||||
| 32 | 67854-2 | End Cap (l) | 1 |
|
- | ||||
| 33 | 67455-1 | Wheel Front | 1 |
|
- | ||||
| 34 | 62580-2 | Axle | 1 |
|
- | ||||
| 35 | 62581-1 | Clip, Retaining Wheel (rear) | 1 |
|
- | ||||
| 36 | 67529-1 | Axle Wheel | 1 |
|
- | ||||
| 37 | WP489478 | Screw (Replaces: 400017-1) | 1 |
|
$ 6.98 | ||||
| 37 | 67280-1 | Faceplate, Bracket | 1 |
|
- | ||||
| 38 | 67455-2 | Wheel, Roller | 1 |
|
- | ||||
| 39 | 56487-2 | Screw, Wheel Adjustment | 1 |
|
- | ||||
| 40 | 59101-1 | Tapping Plate, Wheel | 1 |
|
- | ||||
| 41 | 67806-1 | Bracket, Wheel | 1 |
|
- | ||||
| 42 | 67232-1 | Lever, Wheel Lock | 1 |
|
- |
