SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Maker & Bin


09 - Shelves & Accessories


10 - Unit Compartment & System

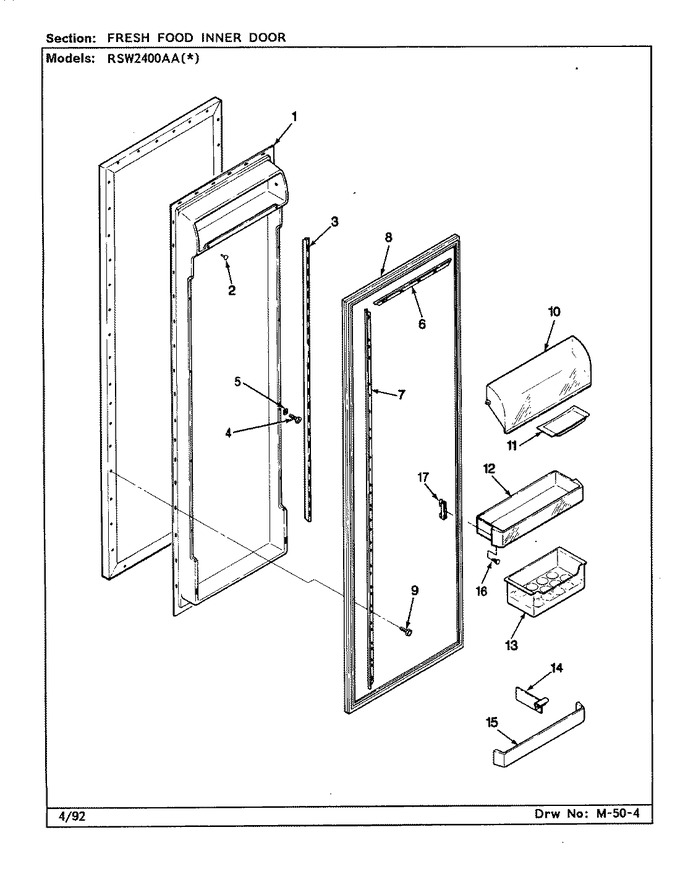

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67059-1		Liner, Door	-	Appelez-nous	-
2	28272-6		Bumper, Door	-	Appelez-nous	-
3	67316-1		Rail, P O Door	-	Appelez-nous	-
4	400027-28		Screw	-	Appelez-nous	-
5	67144-1		Grommet, Pick-off	-	Appelez-nous	-
6	67032-2		Retainer, Door Seal	-	Appelez-nous	-
7	67032-1		Retainer, Door Seal	-	Appelez-nous	-
8	67745-3		Gasket	-	Appelez-nous	-
9	65275-5		Screw	-	Appelez-nous	-
10	67041-5		Door, Dairy	-	Appelez-nous	-
11	67216-1		Tray, Butter	-	Appelez-nous	-
12	67090-1		Shelf, Pick Off Ref	-	Appelez-nous	-
13	67215-1		Tray, Egg	-	Appelez-nous	-
14	67027-1		Organizer,p.o. Shelf	-	Appelez-nous	-
15	67084-1		Front,pick Off Shelf	-	Appelez-nous	-
16	59920-8		Rivet, P.o. Hook	-	Appelez-nous	-
17	67043-5		Hook,p.o.shelf (right)   (Replaces: 67043-1)	-		Immediately	$ 32.93
17	67043-2		Hook,p.o. Shelf (left)	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
