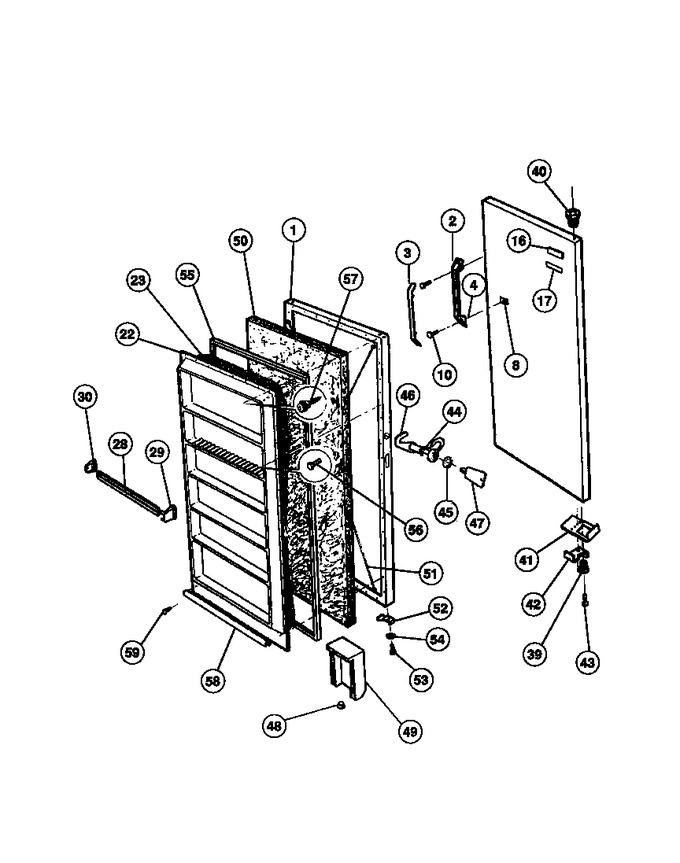

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011511		Door Panel		Appelez-nous	-
2	5303288185		Handle Door		Appelez-nous	-
3	3017682		Insert Handle			Immediately	$ 43.24
4	5303296404		Clip Handle				$ 1.68
8	3202863		Anchor Screw		Appelez-nous	-
10	216858001		Screw Handle   (Replaces: 5303161215)			Immediately	$ 10.85
16	08037409		Frame		Appelez-nous	-
17	216203600		Insert Nameplate		Appelez-nous	-
22	216063507		Panel Inner		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3017670		Shelf Front Wide (5)		Appelez-nous	-
29	216257800		End Cap-rh (5)		Appelez-nous	-
30	216257900		End Cap-lh (5)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket		Appelez-nous	-
54	09950839		Washer, Bracket		Appelez-nous	-
55	3206260		Gasket Door-gray		Appelez-nous	-
56	216858001		Screw Door Panel (24)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303212828		Clip Gasket				$ 16.63
*63760	5300460947		Tape Nameplate				$ 9.82
