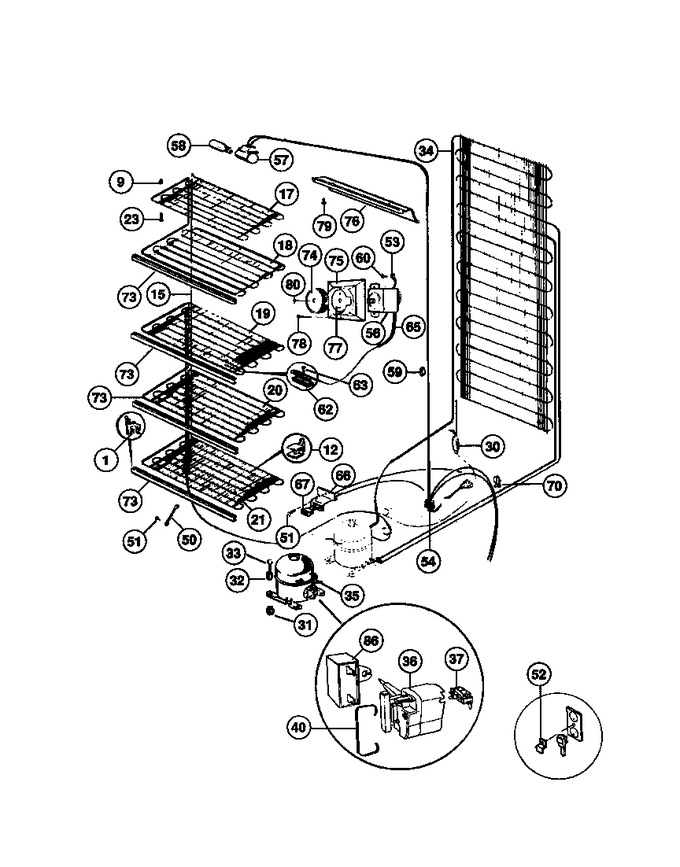

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support-front Lh (4)   (Replaces: 3091418)				$ 18.08
9	216225700		Spacer Top Grid (3)				$ 7.77
12	216225600		Support Rear (6)		Appelez-nous	-
15	08010753		Heat Exchanger		Appelez-nous	-
17	297234500		Top Grid   (Replaces: 216070500)				$ 357.92
18	297234500		First Shelf   (Replaces: 216070600)				$ 357.92
19	297234500		Second Shelf   (Replaces: 216070700)				$ 357.92
20	NOT USED		Third Shelf		Appelez-nous	-
21	297234500		Bottom Shelf   (Replaces: 216070800)				$ 357.92
23	216138900		Screw Top Grid				$ 3.31
30	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve				$ 10.34
33	08002679		Screw		Appelez-nous	-
34	5300123788		Condenser				$ 635.80
35	216241500		Compressor		Appelez-nous	-
36	216008900		Relay		Appelez-nous	-
37	5303206836		Overload		Appelez-nous	-
40	215012000		Clamp				$ 2.63
50	06594651		Wire, Ground		Appelez-nous	-
51	08009412		Screw		Appelez-nous	-
52	5303017718		Clamp-power Cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	216233900		Wiring Harness W/power Cord		Appelez-nous	-
56	216260400		Control-temperature				$ 178.23
57	5300136117		Light Socket				$ 52.46
58	5304517886		Light Bulb   (Replaces: 216222700)			Immediately	$ 73.06
59	08037401		Retainer Harness				$ 2.85
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300052943		Screw Capillary Clamp				$ 5.30
65	5308037932		Sleeve Control Cap Tube		Appelez-nous	-
70	5303212614		Clip Harness				$ 2.88
73	216097900		Shelf Trim (3)		Appelez-nous	-
74	5303210185		Knob Control		Appelez-nous	-
75	5303288184		Housing Control		Appelez-nous	-
76	216241601		Light Shield		Appelez-nous	-
77	08003539		Screw Control To Cover		Appelez-nous	-
78	5300050149		Screw Cover To Liner		Appelez-nous	-
79	5303283898		Screw Light Shield		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
81	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
86	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38
*63762	297001500		Support Front-rh (4)   (Replaces: 08037928)				$ 18.08

    View Diagram in Separate Window       Print Part List
