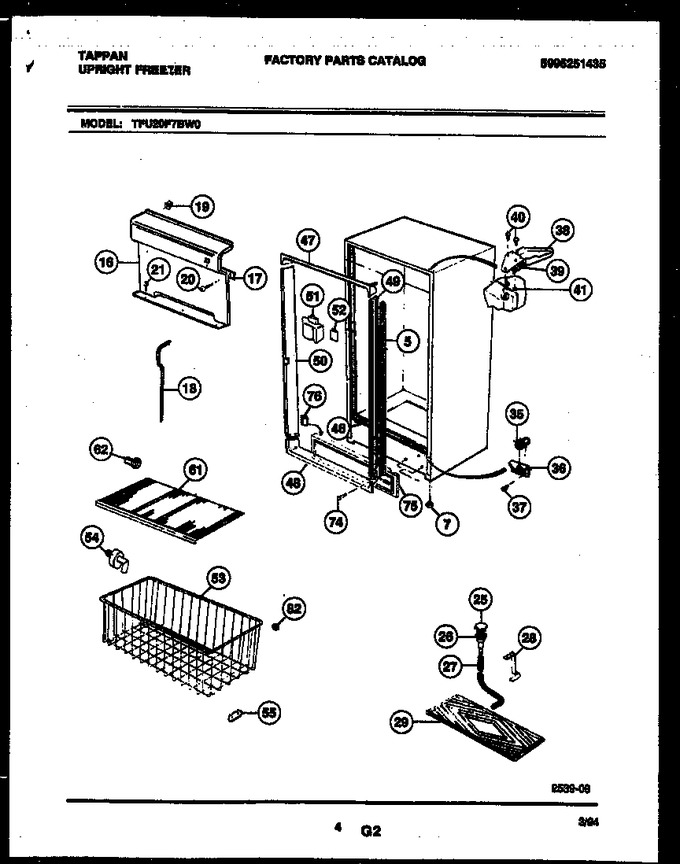

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation (1/2`` X 2``) |
|
- | |||||
| 7 | 205363701 | Leg Leveler-adj (4) |
|
- | |||||
| 16 | 216084100 | Panel-evaporator |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 216204900 | Gasket-panel (2) |
|
$ 51.45 | |||||
| 19 | 301036 | Insert Nut (4) (Replaces: 3017666) |
|
$ 15.90 | |||||
| 20 | 216858001 | Screw-panel To Liner (6) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21 | 216283900 | Screw-panel To Evaporator (2) |
|
- | |||||
| 25 | 216503100 | Screen, Drain (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 27 | 216269601 | Hose-drain |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Defrost Drain Pan |
|
- | |||||
| 35 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 36 | 216247400 | Hinge-bottom |
|
- | |||||
| 37 | 154518001 | Screw-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 38 | 5303212912 | Cover, Hinge |
|
- | |||||
| 39 | 5303212935 | Hinge, Top |
|
- | |||||
| 40 | 5303212937 | Screw-hinge |
|
- | |||||
| 41 | 154518001 | Nut Insert-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 216085900 | Breaker, Top |
|
- | |||||
| 48 | 216085800 | Breaker, Bottom |
|
- | |||||
| 49 | 216107501 | Breaker, Hinge Side |
|
- | |||||
| 50 | 216107601 | Breaker, Lock Side |
|
- | |||||
| 51 | 216013600 | Support, Lock |
|
- | |||||
| 52 | 216013700 | Clip Lock |
|
- | |||||
| 53 | 216154400 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 61 | 216267000 | Shelf-lower (1) |
|
- | |||||
| 61 | 216266900 | Shelf, Upper (3) |
|
- | |||||
| 62 | 216261100 | Support-front & Rear (20) |
|
- | |||||
| 74 | 5303302714 | Screw-panel Base (2) |
|
- | |||||
| 75 | 216294413 | Panel-base-gray |
|
- | |||||
| 82 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 40A | 08037937 | Spacer-top Breaker (2) (non-illustrated) |
|
- | |||||
| 55A | 5303288196 | Spacers-basket (4) (non-illustrated) |
|
- |
