SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts

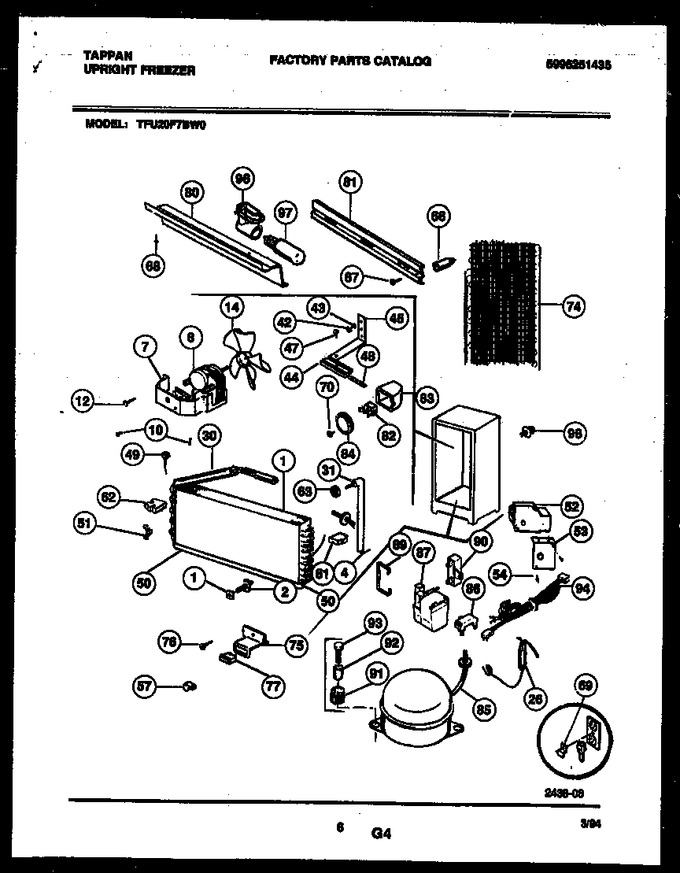

04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288322 | Evaporator Assembly |
|
- | |||||
| 2 | 06599544 | Support, Evaporator |
|
- | |||||
| 3 | 08013198 | Spacer Evaporator (2) |
|
- | |||||
| 4 | 5303272332 | Heat Exchanger |
|
- | |||||
| 7 | 08013207 | Bracket Fan Motor |
|
$ 12.92 | |||||
| 8 | 3205519 | Fan Motor |
|
- | |||||
| 10 | 08037851 | Screw-bracket |
|
$ 3.57 | |||||
| 12 | 216858001 | Screw-bracket To Liner (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 14 | 3205520 | Fan Blade |
|
- | |||||
| 26 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 30 | 06594625 | Insulation-heat Exchanger |
|
- | |||||
| 31 | 09948773 | Insulation |
|
$ 12.60 | |||||
| 42 | 08009412 | Screw |
|
- | |||||
| 43 | 5300095480 | Washer Bracket |
|
- | |||||
| 44 | 05878562 | Clamp |
|
- | |||||
| 45 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 47 | 5300052943 | Screw, Clamp |
|
$ 5.30 | |||||
| 48 | 5308037932 | Sleeve, Capillary Tube |
|
- | |||||
| 49 | 216254500 | Switch-termination |
|
$ 91.67 | |||||
| 50 | 216254600 | Heater-defrost |
|
$ 259.53 | |||||
| 51 | 06599536 | Clip, Heater |
|
- | |||||
| 52 | 5308037967 | Timer, Defrost |
|
- | |||||
| 53 | 08016580 | Bracket |
|
- | |||||
| 54 | 08037849 | Screw Timer To Bracket |
|
$ 8.98 | |||||
| 57 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 61 | 06599531 | Air Seal, Rh |
|
- | |||||
| 62 | 3017674 | Air Seal, Lh |
|
- | |||||
| 63 | 06594629 | Grommet |
|
- | |||||
| 66 | 08000456 | Spacer Baffle Plate (2) |
|
- | |||||
| 67 | 216858001 | Screw Baffle Plate (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 68 | 5303283898 | Screw Shield (2) |
|
- | |||||
| 69 | 08016777 | Assy-clamp-power Cord |
|
- | |||||
| 70 | 09950853 | Screw, Knob |
|
- | |||||
| 74 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 75 | 216252001 | Bracket, Signal Light |
|
- | |||||
| 76 | 08037851 | Screw-bracket |
|
$ 3.57 | |||||
| 77 | 06594648 | Signal Light, Amber |
|
- | |||||
| 80 | 216241604 | Light Shield |
|
- | |||||
| 81 | 5303288233 | Baffle |
|
- | |||||
| 82 | 216303500 | Control-temperature |
|
- | |||||
| 83 | 216230300 | Cover, Control |
|
$ 49.88 | |||||
| 84 | 216008801 | Knob-control |
|
- | |||||
| 85 | 216110300 | Compressor |
|
- | |||||
| 86 | 216110400 | Overload |
|
- | |||||
| 87 | 216008900 | Relay |
|
- | |||||
| 89 | 215012000 | Clip |
|
$ 2.63 | |||||
| 90 | 5304464438 | Run Capacitor (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| 91 | 216498900 | Grommet (4) (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 92 | 5306594529 | Sleeve (3) |
|
$ 10.34 | |||||
| 93 | 5303272328 | Screw (3) |
|
$ 10.34 | |||||
| 94 | 216268500 | Harness W/ Power Cord |
|
- | |||||
| 96 | 5300136117 | Socket |
|
$ 52.46 | |||||
| 97 | 5304517886 | Bulb (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 98 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| *98174 | 06594651 | Wire, Ground |
|
- | |||||
| 3A | 06599546 | Spacer-support, Evaporator |
|
- | |||||
| 84A | 06599553 | Clip, Wires |
|
- |
