01 - Cover

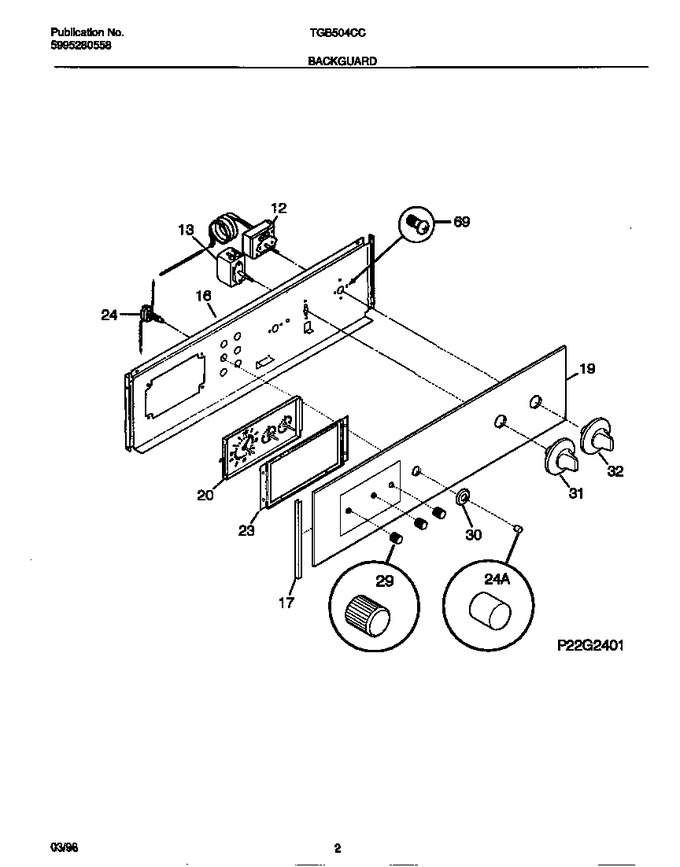

02 - Backguard
03 - Burner
04 - Body
05 - Drawer/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 318058500 | Thermostat-oven |
|
- | |||||
| 13 | 318057500 | Switch-selector |
|
- | |||||
| 16 | 318022500 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 5303317687 | Trim-control Panel |
|
- | |||||
| 19 | 318000001 | Panel-control |
|
- | |||||
| 20 | 318011000 | Clock/timer, Analog 3 Stem |
|
- | |||||
| 23 | 3202088 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5303302303 | Nut, Hex, Light Switch (not Illustrated) |
|
- | |||||
| 24 | 318090001 | Switch-light/lamp |
|
- | |||||
| 24 | 5303299474 | Knob-light Switch, Black |
|
- | |||||
| 29 | 316029000 | Knob-clock |
|
- | |||||
| 30 | 5303316767 | Nut-decorative, Black |
|
- | |||||
| 31 | 318016708 | Knob-selector |
|
- | |||||
| 32 | 318016807 | Knob-thermostat |
|
- | |||||
| 69 | 5303292005 | Screw-switch Mtg, 8-32 X 5/32, (2) |
|
- |
