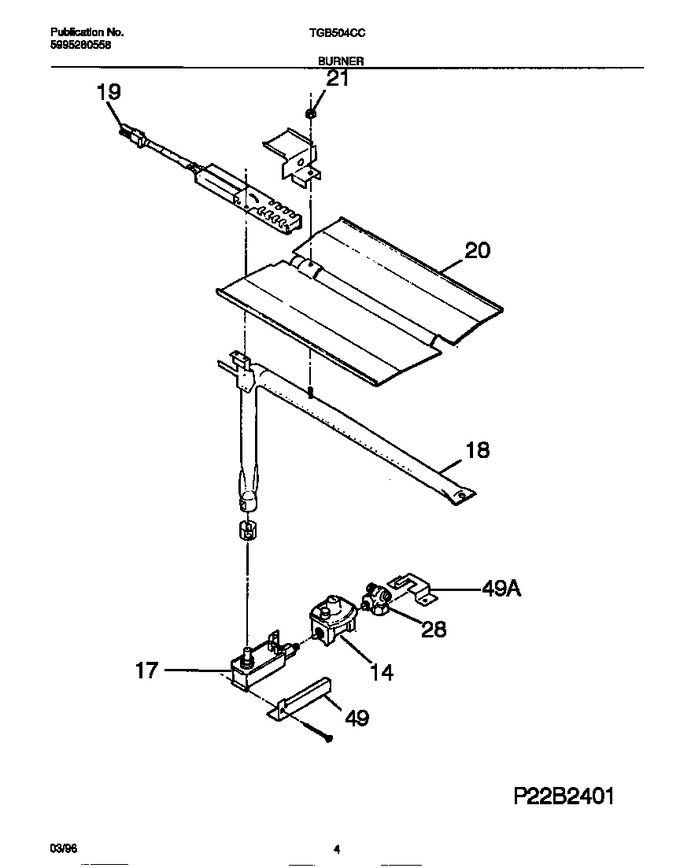

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5303210167 | Regulator,pressure |
|
- | |||||
| 17 | 5303317688 | Valve-safety |
|
- | |||||
| 18 | 5303207603 | Burner-oven |
|
- | |||||
| 19 | 5303935066 | Ignitor-oven |
|
Immediately | $ 59.58 | ||||
| 20 | 5303317122 | Baffle-oven Burner |
|
- | |||||
| 21 | 154079601 | Nut (Replaces: 3201885) |
|
$ 0.41 | |||||
| 28 | 5303295305 | Valve-shut Off |
|
- | |||||
| 49 | 5303317123 | Bracket-safety Valve,support |
|
- | |||||
| 49 | 5303317124 | Bracket-safety Valve |
|
- | |||||
| *68480 | 5303295303 | Retainer-ovn Brnr |
|
- |
