SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer

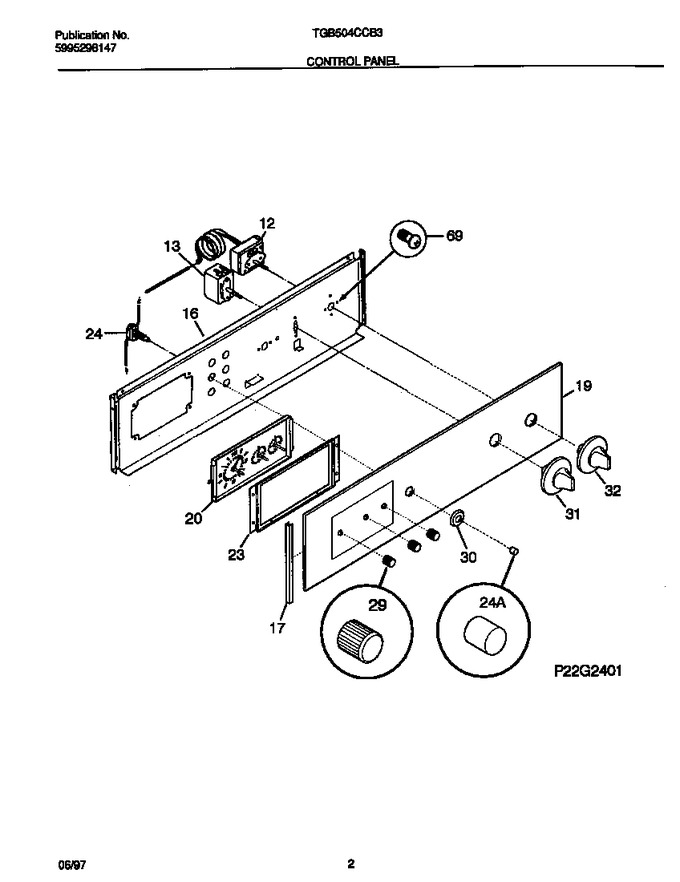

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058500		Thermostat-oven		Appelez-nous	-
13	318057500		Switch-selector		Appelez-nous	-
16	318022501		Plate, Instrument Mtg		Appelez-nous	-
19	31800001		Panel-control		Appelez-nous	-
20	318011000		Clock/timer, Analog 3 Stem		Appelez-nous	-
20	5303308450		Screw, 8 X 3/8, Clock/door (not Illustrated)		Appelez-nous	-
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
24	5303280262		Switch-oven Light, Push		Appelez-nous	-
24	5303300411		Bezel-switch (not Illustrated)		Appelez-nous	-
29	318036310		Knob-clock, (3)				$ 41.32
31	318016708		Knob-selector		Appelez-nous	-
32	318016807		Knob-thermostat		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
*50560	318106003		Insulation,(2)		Appelez-nous	-
*50561	318106004		Insulation,(1)		Appelez-nous	-
*50562	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
