SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body

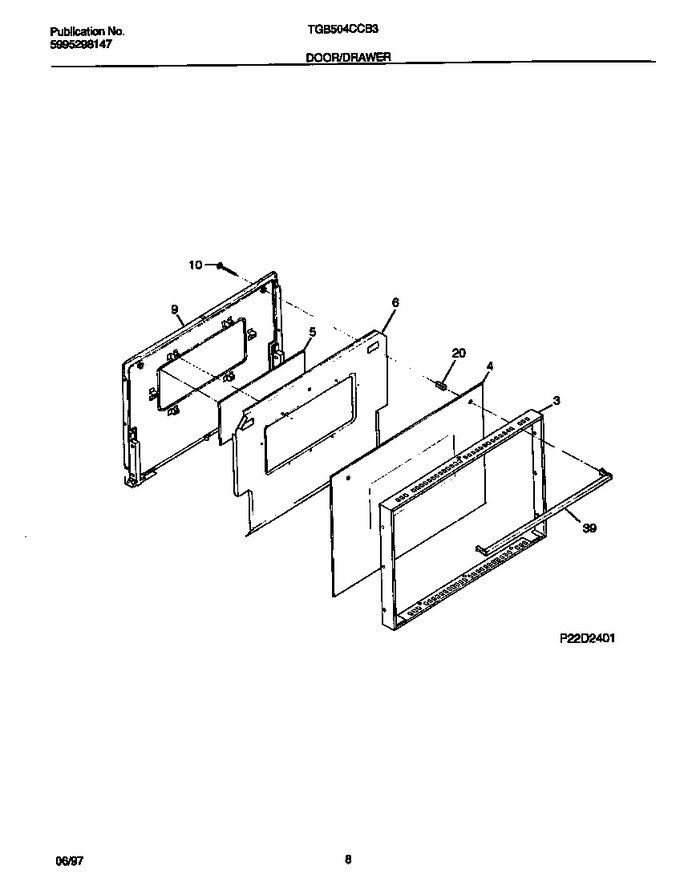

05 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026500		Trim-oven Door		Appelez-nous	-
4	5308012625		Glass-oven Door,black ,outer		Appelez-nous	-
5	5303207137		Glass-oven Door,inner		Appelez-nous	-
6	318116600		Shield-wool		Appelez-nous	-
9	318048900		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
20	08010461		Spacer-handle,(2)		Appelez-nous	-
39	318040200		Handle-door,oven		Appelez-nous	-
*50570	08010463		Fastener-clip		Appelez-nous	-
*50571	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*50572	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*50573	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*50574	241T017P226		Fastener-spacer		Appelez-nous	-
*50575	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*50576	3200314		Insulation,oven Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
