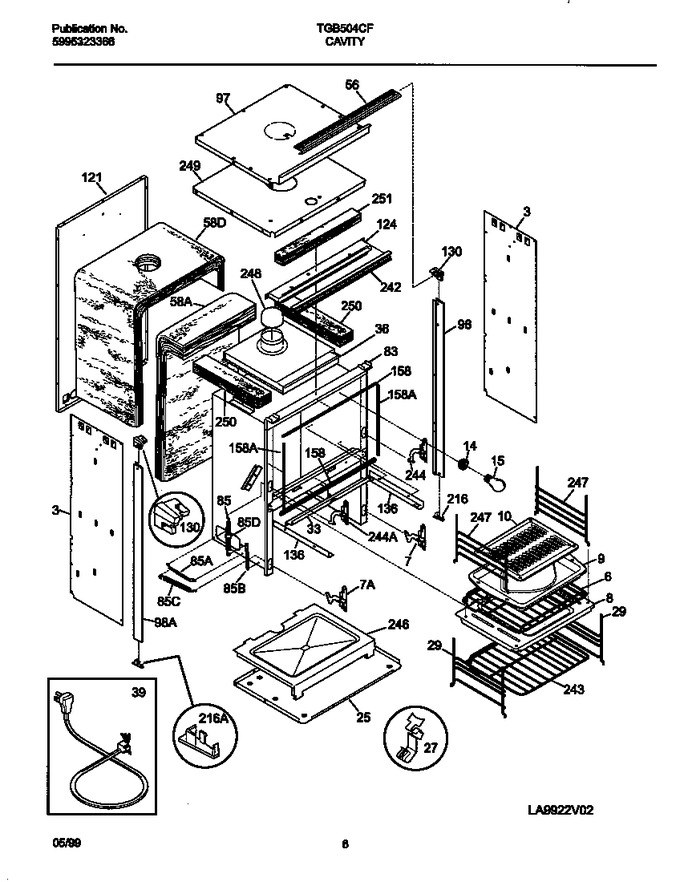

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303317132		Wrapper-side Outer		Appelez-nous	-
6	08012158		Rack-oven,upper ,(2)		Appelez-nous	-
7	5303298313		Hinge Ass,y Lower,rh Lower		Appelez-nous	-
7	5303298312		Hinge Ass`y Lower,lh Lower		Appelez-nous	-
8	318136500		Panel-oven Bottom		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
25	5303317712		Shield-heat,lower		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
29	5303209887		Glide-broiler Rack		Appelez-nous	-
33	5303317128		Shield-heat		Appelez-nous	-
36	5303298341		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
56	318028200		Trim-oven Top		Appelez-nous	-
58	5304400184		Insulation		Appelez-nous	-
58	5304400183		Insulation		Appelez-nous	-
83	318109510		Liner-oven Assy		Appelez-nous	-
85	5303317126		Bracket-spring,upper		Appelez-nous	-
85	08012781		Sleeve-door Spring		Appelez-nous	-
85	5303207651		Spring-oven Door,upper		Appelez-nous	-
85	5303317711		Spring-oven Door,lower		Appelez-nous	-
85	318113300		Bracket-spring,upper		Appelez-nous	-
97	5303317130		Wrapper-top		Appelez-nous	-
98	318029000		Trim-bodyside,lh		Appelez-nous	-
98	318029001		Trim-bodyside,rh		Appelez-nous	-
121	5303317131		Wrapper-back		Appelez-nous	-
124	318076801		Box-flue		Appelez-nous	-
130	318034600		Cap-end Top,black ,(2)		Appelez-nous	-
136	5303317129		Angle-rack Guide		Appelez-nous	-
216	318034500		Cap-end Bottom,rh		Appelez-nous	-
216	318034503		Cap-end Bottom,white ,lh		Appelez-nous	-
216	318034501		Cap-end Bottom,lh		Appelez-nous	-
216	318034502		Cap-end Bottom,white ,rh		Appelez-nous	-
242	318027200		Trim Center		Appelez-nous	-
243	3201495		Rack-oven,lower		Appelez-nous	-
246	318133600		Panel-oven Bottom		Appelez-nous	-
247	3018717		Glide-oven Rack		Appelez-nous	-
248	5303317121		Cap-flue		Appelez-nous	-
249	5304400385		Wrapper-top,inner		Appelez-nous	-
250	318106003		Insulation,(2)		Appelez-nous	-
251	318106004		Insulation,(1)		Appelez-nous	-
*64444	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*64446	5304400428		Screw (8-15 X 1/8 )				$ 5.40
*64447	5304400429		Screw (8-18 X 1 )		Appelez-nous	-
*64448	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*64449	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
158A	5303207644		Seal-door,black ,top Broiler		Appelez-nous	-
158B	5303295311		Seal-side,bake Oven		Appelez-nous	-
244A	5303205940		Hinge Ass`y Upper,rh Upper		Appelez-nous	-
244B	8014383		Ballast		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
