SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door

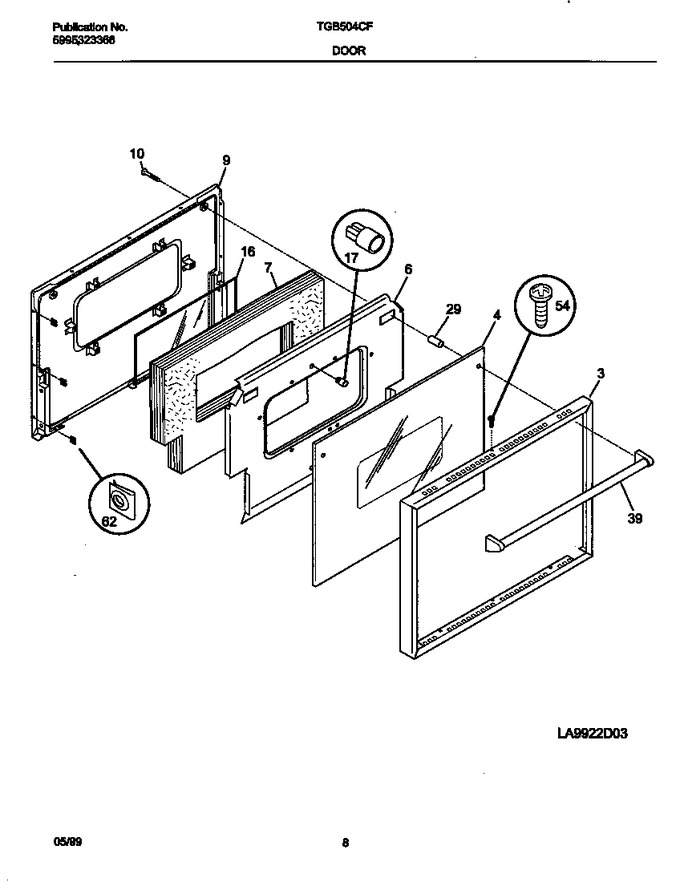

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026500		Trim-oven Door		Appelez-nous	-
4	5308012625		Glass-oven Door,black ,outer		Appelez-nous	-
6	318116600		Shield-wool		Appelez-nous	-
7	3200314		Insulation,oven Door		Appelez-nous	-
9	318048900		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg,wafer Head ,10-24 X 3.25		Appelez-nous	-
16	318042310		Glass-oven Door,heat Barrier ,(2)		Appelez-nous	-
17	5304400397		Fastener-spacer		Appelez-nous	-
29	08010461		Spacer-handle,(2)		Appelez-nous	-
39	318040200		Handle-door,oven		Appelez-nous	-
54	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
62	08010463		Fastener-clip		Appelez-nous	-
*64443	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
