Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 5303307975 Bracket-support, Main Top Appelez-nous -
16 318018501 Main Top, White Appelez-nous -
19 5303307928 Pan-burner, Gray, (4) Appelez-nous -
20 318025000 Grate, Gray, (4) Appelez-nous -
21 318050500 Trim Ring-burner Appelez-nous -
22 316011003 Cap-burner, Gray, (4) Appelez-nous -
43 318016400 Knob-control, White Appelez-nous -
45 5303307933 Bushing, Top Burner Knob Appelez-nous -
46 5303307897 Burner Box Appelez-nous -
47 5303303991 Cord-electric Power Special Order $ 96.50

*73080 3051889 Tape Appelez-nous -
*73081 5303307938 Tape, Foam Appelez-nous -
31A 5303307931 Gasket, Pan Appelez-nous -
45A 5304513507 Bushing - Snap   (Replaces: 3201437) Special Order $ 9.10


    View Diagram in Separate Window     Print Icon   Print Part List

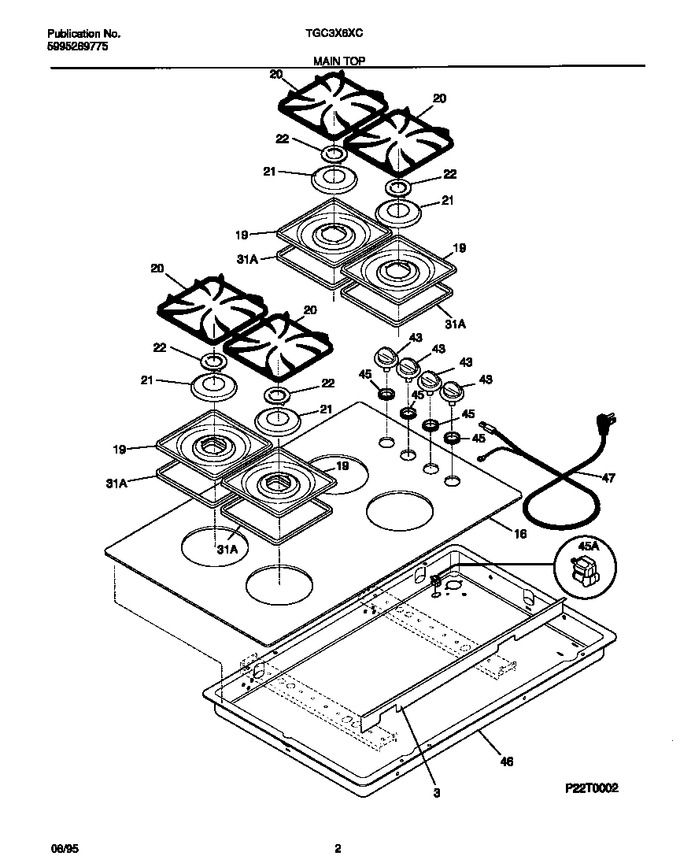

Diagram for TGC3X6XCS1
