SELECT A DIAGRAM

01 - Cover


02 - Main Top

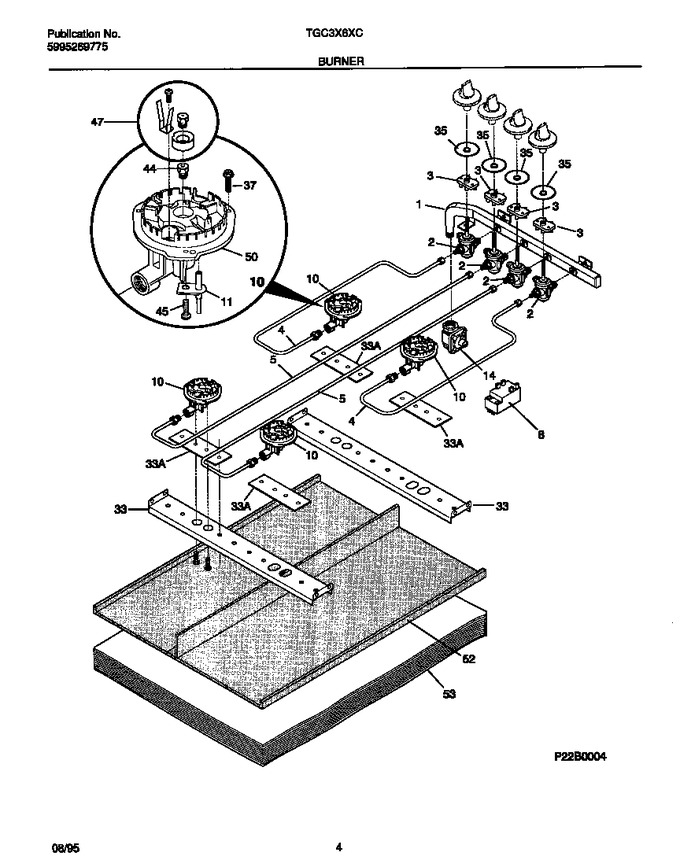

03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303307976		Manifold-pipe		Appelez-nous	-
2	5303935042		Valve-top Burner, 2-position, (4)				$ 175.25
3	316032002		Switch-igniter, (4)				$ 63.46
4	5303305456		Tube-burner, Rf, Rr		Appelez-nous	-
5	5303305455		Tube-burner, Lf, Lr		Appelez-nous	-
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	5303935025		Burner Assy-top, Sealed, Small, (2), Includes, 11, 37, 4		Appelez-nous	-
11	316011200		Ignitor-top Burner, W/mtg Bracket			Immediately	$ 38.68
14	5308007974		Regulator-pressure				$ 309.02
33	5303307977		Bracket-burner		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
37	5303311099		Screw		Appelez-nous	-
44	5303210090		Orifice-top Burner, Small, (2)				$ 54.18
45	316011100		Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
47	5303319609		Lp Conversion Kit		Appelez-nous	-
50	5303935026		Burner-top, Small, (2) Includes, 37		Appelez-nous	-
52	5303209024		Shield-heat		Appelez-nous	-
53	5303209025		Insulation		Appelez-nous	-
*73082	318065000		Restrictor		Appelez-nous	-
*73083	318084000		Strap		Appelez-nous	-
*73084	5303210103		Wire, Igniter 14``		Appelez-nous	-
*73085	5303210104		Wire, Igniter 20``		Appelez-nous	-
*73086	5303210105		Wire, Igniter 30``		Appelez-nous	-
*73087	5303210106		Wire, Igniter 36``		Appelez-nous	-
*73088	5303307979		Harness-wiring, Main		Appelez-nous	-
*73089	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
33A	318072000		Bracket-burner Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
