01 - Cover

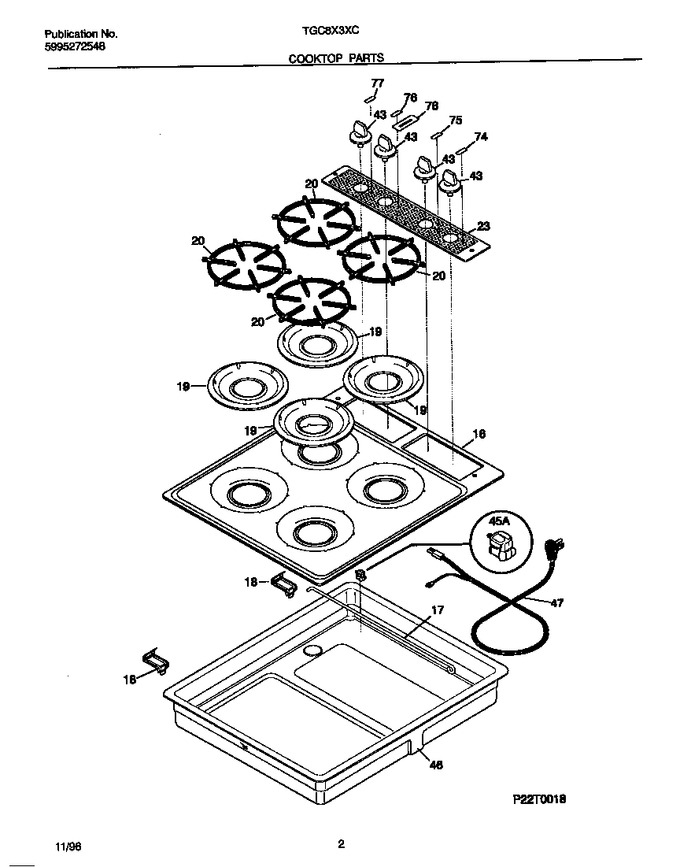

02 - Cooktop Parts
03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5303305546 | Main Top, Chrome |
|
- | |||||
| 16 | 5303305547 | Channel-top Stiffener (not Illustrated) |
|
- | |||||
| 19 | 3131115 | Pan, Burner (4) |
|
- | |||||
| 20 | 316040807 | Grate, (4) |
|
- | |||||
| 43 | 318016204 | Knob-control, Black, (4) |
|
- | |||||
| 45 | 08008983 | Bushing, Snap |
|
- | |||||
| 46 | 5303305549 | Burner Box |
|
- | |||||
| 47 | 5303311311 | Cord,electric Power |
|
- | |||||
| 74 | 318101500 | Plate-control, Lf |
|
- | |||||
| 75 | 318101501 | Plate-control, Rf |
|
- | |||||
| 76 | 318101502 | Plate-control, Lr |
|
- | |||||
| 77 | 318101503 | Plate-control, Rr |
|
- | |||||
| 78 | 318075800 | Nameplate |
|
- | |||||
| *79680 | 5303131254 | Fastener-spacer, Push-in Nut, Nylon |
|
- | |||||
| 17A | 5303292003 | Rod-maintop Support |
|
- | |||||
| 17B | 3016999 | Fastener, Rod Mtg. (not Illustrated) |
|
- | |||||
| 18A | 5303292006 | Hinge-main Top, (2) |
|
- | |||||
| 18B | 5303311310 | Rivet, Hinge Mtg, 18 (not Illustrated) |
|
- | |||||
| 23A | 318075400 | Panel-control Assy |
|
- | |||||
| 23B | 5303300265 | Screw, 8-18 X 1/2 (not Illustrated) |
|
$ 15.17 |
