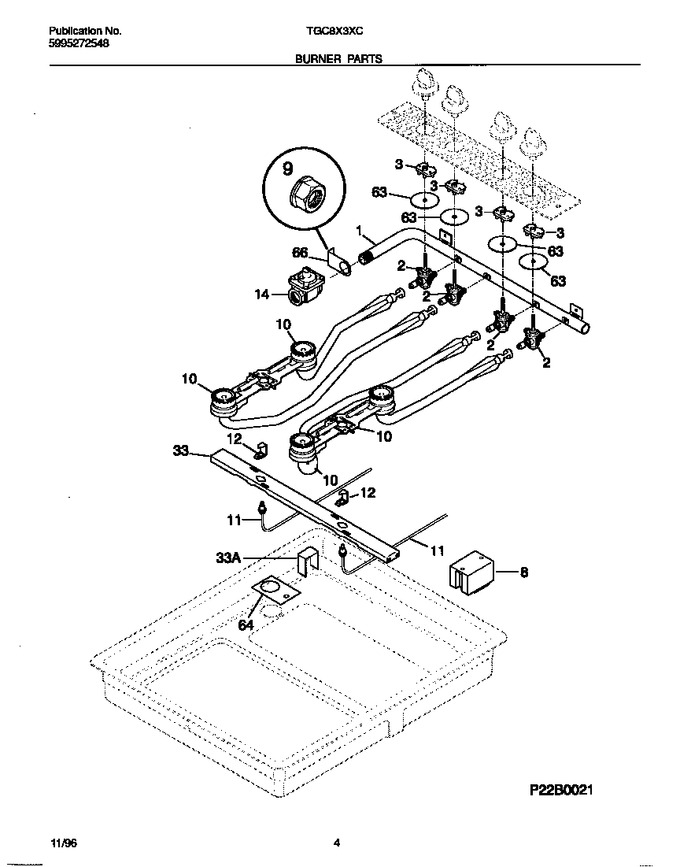

03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303294450		Manifold Pipe		Appelez-nous	-
2	316009600		Valve-top Burner, (4), With Mtg Screws		Appelez-nous	-
3	316032001		Switch-igniter, (4)				$ 69.35
9	5303311307		Nut,angle ,4-20		Appelez-nous	-
12	3016993		Retainer-igniter		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
33	5303294763		Bracket,support		Appelez-nous	-
63	5303017004		Seal-switch		Appelez-nous	-
64	5303294750		Retainer/bracket		Appelez-nous	-
66	5303294765		Angle, Manifold Pipe, Mtg		Appelez-nous	-
*79681	08012135		Fastener, Tandem		Appelez-nous	-
10A	5303207606		Burner-top, Front		Appelez-nous	-
10B	5303207607		Burner-top, Rear		Appelez-nous	-
11A	5303311313		Ignitor-top Burner, Base, Front, (2)		Appelez-nous	-
11B	5303311314		Ignitor-top Burner, Base, Rear, (2)		Appelez-nous	-
33A	5303294764		Channel-burner Support		Appelez-nous	-
33B	5303311306		Screw, 8-18 X 3/8 (not Illustrated)		Appelez-nous	-
8A	5303209931		Spark Module		Appelez-nous	-
8B	5303311312		Screw, Spark Module, 6-32 X 3/8, (2) (not Illustrated)		Appelez-nous	-
